AD5941BCPZ-RL7 - Analog Devices

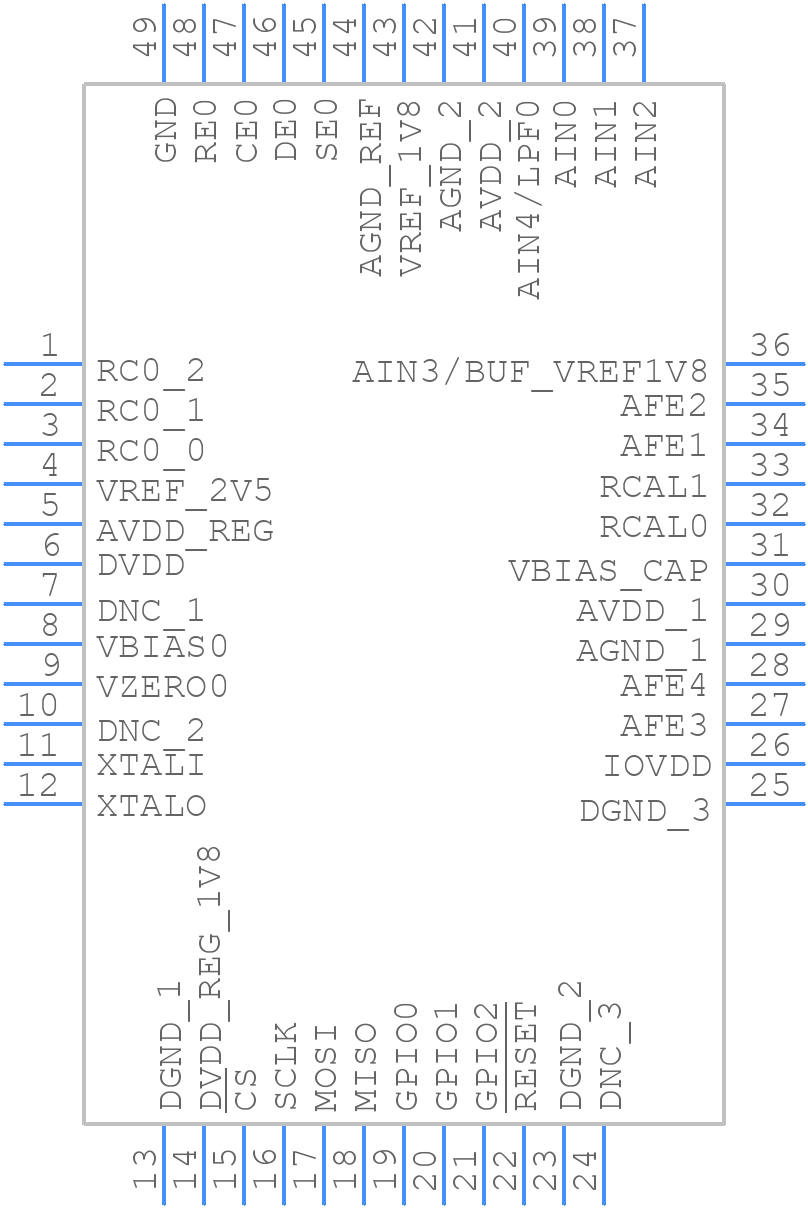

AD5941BCPZ-RL7 Details

• Manufacturer Part Number:

  AD5941BCPZ-RL7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LFCSP-48

• Pin Count:

  48

• Manufacturer Package Code:

  CP-48-4

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2019-08-14

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog Input Voltage-Max:

  2.1 V

• Analog Input Voltage-Min:

  0.2 V

• Converter Type:

  DATA ACQUISITION DEVICE

• JESD-30 Code:

  S-XQCC-N48

• Length:

  7 mm

• Linearity Error-Max (EL):

  0.006103%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  1

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY, 2'S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HWQCCN

• Package Equivalence Code:

  LCC48,.27SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFIL

• Peak Reflow Temperature (Cel):

  260

• Sample Rate:

  1.6 MHz

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  0.74 mA

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm
