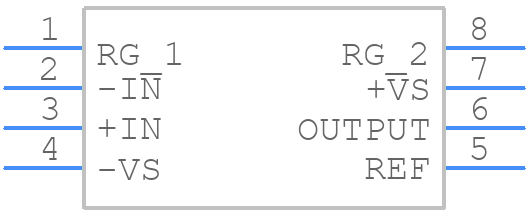

AD620BN - Rochester Electronics

AD620BN Details

• Manufacturer Part Number:

  AD620BN

• Pbfree Code:

  No

• Rohs Code:

  No

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, MO-095-AA, DIP-8

• Pin Count:

  8

• Reach Compliance Code:

  Unknown

• Manufacturer:

  Rochester Electronics LLC

• Amplifier Type:

  INSTRUMENTATION AMPLIFIER

• Average Bias Current-Max (IIB):

  0.0015 µA

• Bandwidth (3dB)-Nom:

  1 MHz

• Common-mode Reject Ratio-Min:

  86 dB

• Input Offset Current-Max (IIO):

  0.00075 µA

• Input Offset Voltage-Max:

  85 µV

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e0

• Length:

  9.27 mm

• Moisture Sensitivity Level:

  NOT APPLICABLE

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Non-linearity-Max:

  0.004%

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT APPLICABLE

• Qualification Status:

  COMMERCIAL

• Seated Height-Max:

  4.57 mm

• Slew Rate-Nom:

  1.2 V/us

• Subcategory:

  Instrumentation Amplifier

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT APPLICABLE

• Voltage Gain-Max:

  10000

• Voltage Gain-Min:

  1

• Voltage Gain-Nom:

  10

• Width:

  7.62 mm
