AD6624AABCZ - Analog Devices

Description: Four-Channel, 100 MSPS Digital Receive Signal Processor (RSP)

Download AD6624AABCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD6624AABCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

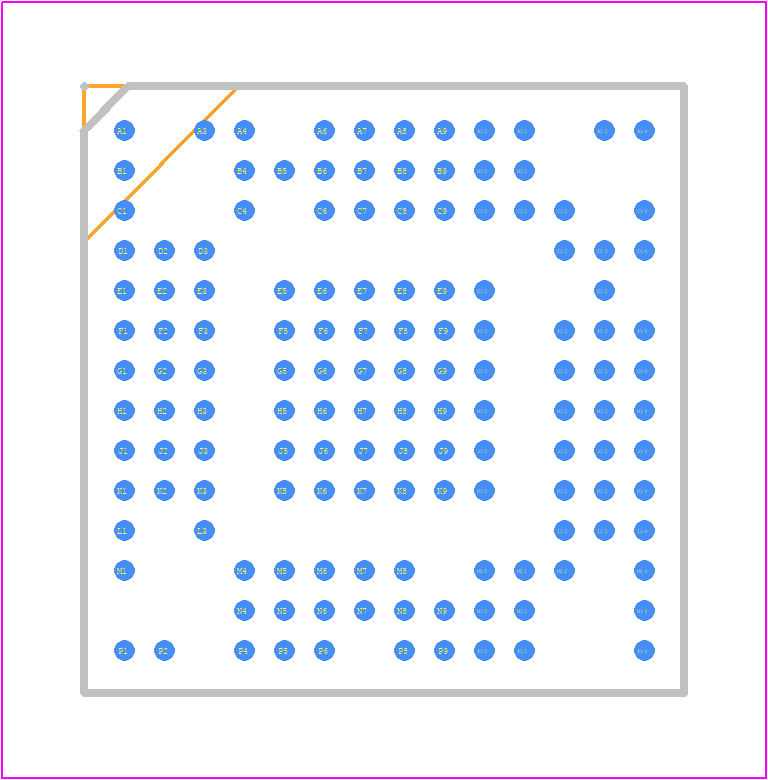

AD6624AABCZ - Analog Devices PCB footprint - BGA - BGA - 96-Lead PBGA (BC-196)
click to zoom
3D Models
AD6624AABCZ - Analog Devices - 3D model - BGA - 96-Lead PBGA (BC-196)
click to zoom

AD6624AABCZ Details

  • Manufacturer Part Number:

    AD6624AABCZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    BGA

  • Package Description:

    PLASTIC, BGA-196

  • Pin Count:

    196

  • Manufacturer Package Code:

    BC-196-3

  • Country Of Origin:

    Singapore

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-PBGA-B196

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA196,14X14,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

AD6624AABCZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the signal traces short and direct.
  • The AD6624AABCZ has an internal calibration circuit that is enabled by applying a voltage to the CAL pin. The calibration process is initiated by applying a voltage between 1.2V and 1.4V to the CAL pin. The device will then calibrate itself and store the calibration data in its internal registers.
  • The recommended power-up sequence is to first apply the analog power supply (AVDD) followed by the digital power supply (DVDD). The digital power supply should be applied at least 10ms after the analog power supply. This ensures that the analog circuitry is fully powered up before the digital circuitry is enabled.
  • The AD6624AABCZ has a built-in thermal shutdown feature that is triggered when the device junction temperature exceeds 150°C. When this occurs, the device will shut down and the TSD pin will go low. To handle this, connect the TSD pin to a GPIO pin on your microcontroller and monitor it for a low signal. If a low signal is detected, shut down the device and wait for it to cool down before restarting.
  • The recommended clock frequency for the AD6624AABCZ is between 10MHz and 40MHz. The device can operate at higher frequencies, but this may affect its performance and power consumption.
