AD674BJNZ - Analog Devices

Description: AD674BJNZ, 12 bit ADC, Parallel, 28-Pin PDIP W

Download AD674BJNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

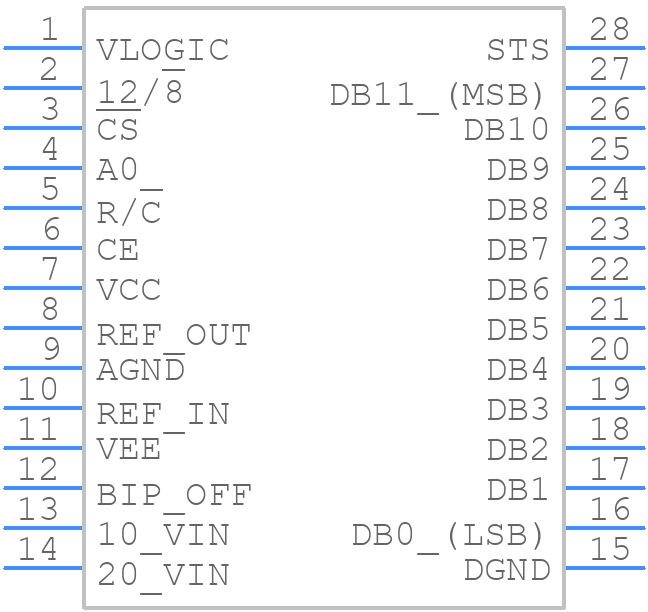

AD674BJNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD674BJNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - n28
click to zoom
3D Models
AD674BJNZ - Analog Devices - 3D model - Dual-In-Line Packages - n28
click to zoom

AD674BJNZ Details

  • Manufacturer Part Number:

    AD674BJNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    N-28-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    15 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    37.4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    6.35 mm

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

AD674BJNZ Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane, separate analog and digital grounds, and a star-grounding configuration is recommended. Additionally, use a low-ESR capacitor for decoupling and keep the analog and digital signal traces separate.
  • To optimize the AD674BJNZ for high-speed applications, use a high-quality clock source, ensure proper PCB layout and decoupling, and consider using a track-and-hold amplifier to improve the signal-to-noise ratio.
  • The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD), and then the clock signal. This ensures proper initialization and prevents damage to the device.
  • Use a digital buffer or a low-skew clock distribution network to ensure accurate and reliable data transmission. Additionally, consider using a FIFO or a data buffer to handle the high-speed digital output data.
  • Ensure good airflow around the device, use a heat sink or thermal pad, and consider using a thermal interface material to improve heat dissipation. Additionally, follow the recommended operating temperature range and thermal design guidelines.
