AD677KNZ - Analog Devices

AD677KNZ Details

• Manufacturer Part Number:

  AD677KNZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

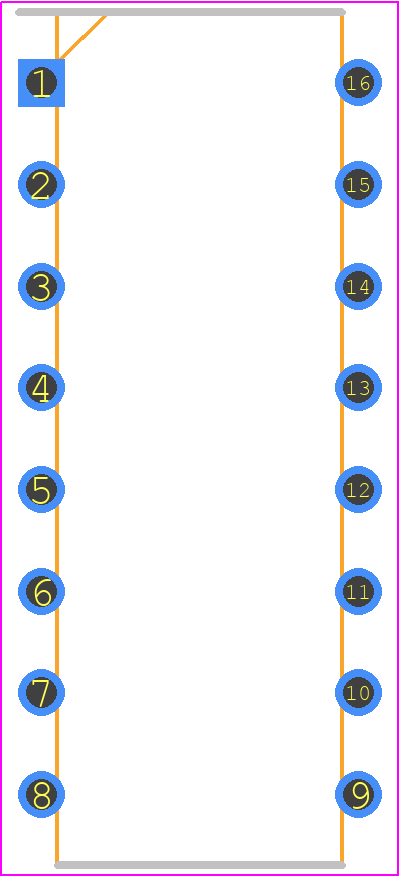

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  N-16

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Input Voltage-Max:

  10 V

• Analog Input Voltage-Min:

  -10 V

• Conversion Time-Max:

  1000 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e3

• Length:

  20.13 mm

• Linearity Error-Max (EL):

  0.0023%

• Negative Supply Voltage-Nom:

  -12 V

• Number of Analog In Channels:

  1

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.1 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  5.33 mm

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  NO

• Technology:

  BICMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
