AD680ARZ - Analog Devices

Description: Voltage reference,AD680AR 2.5V

Download AD680ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

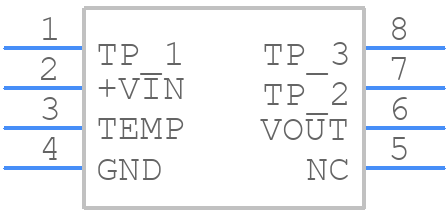

Symbol
AD680ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD680ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8)
click to zoom
3D Models
AD680ARZ - Analog Devices - 3D model - Small Outline Packages - . 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8)
click to zoom

AD680ARZ Details

  • Manufacturer Part Number:

    AD680ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, PLASTIC, MO-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.505 V

  • Output Voltage-Min:

    2.495 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.2%

  • Width:

    3.9 mm

AD680ARZ Frequently Asked Questions (FAQs)

  • It is recommended to place the AD680ARZ close to the analog signal sources, use a solid ground plane, and keep the input traces short and shielded to minimize noise. Additionally, decoupling capacitors should be placed close to the device to filter out high-frequency noise.
  • The AD680ARZ has an internal calibration circuit that can be enabled by applying a specific voltage sequence to the CAL pin. Refer to the datasheet for the calibration procedure. It is also recommended to use a high-precision voltage reference and to calibrate the device in the intended operating temperature range.
  • The AD680ARZ can handle input voltages up to ±16.5 V, but it is recommended to limit the input voltage to ±12 V for optimal performance. The device has internal overvoltage protection, but it is still important to use external protection circuits, such as voltage limiters or clamping diodes, to prevent damage from excessive voltage spikes.
  • The AD680ARZ can handle common-mode voltages up to ±12 V, but it is recommended to keep the common-mode voltage within ±5 V for optimal performance. The device has a high common-mode rejection ratio (CMRR) to minimize the effects of common-mode voltage on the output.
  • It is recommended to use a low-ESR capacitor (e.g., 10 μF) in parallel with a high-frequency capacitor (e.g., 100 nF) to decouple the power supply. Additionally, a ferrite bead or a pi-filter can be used to filter out high-frequency noise on the power supply lines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD680ARZ Overview

Use the download button to access the AD680ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD680, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
