AD7091BCPZ-RL7 - Analog Devices

Description: ANALOG DEVICES - AD7091BCPZ-RL7 - ANALOG TO DIGITAL CONVERTER ADC, 12 BIT, 1MSPS, LFCSP-8

Download AD7091BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

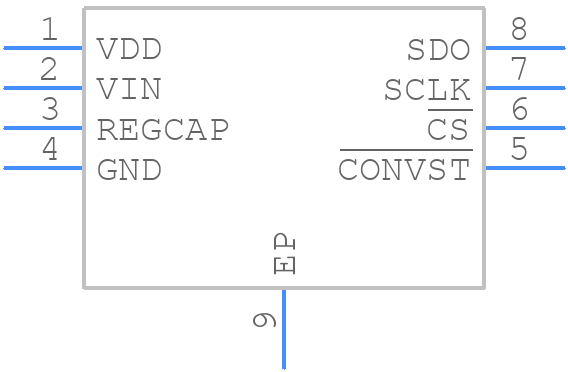

Symbol
AD7091BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7091BCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 2 mm × 2 mm Body and 0.55 mm Package Height (CP-8-10)
click to zoom
3D Models
AD7091BCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - 2 mm × 2 mm Body and 0.55 mm Package Height (CP-8-10)
click to zoom

AD7091BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7091BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.65 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.65 mm

  • Supply Current-Max:

    554 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

AD7091BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • The AD7091BCPZ-RL7 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an internal voltage reference that can be calibrated using the VREFIN pin. It is recommended to follow the calibration procedure outlined in the datasheet to ensure accurate conversions.
  • The maximum sampling rate of the AD7091BCPZ-RL7 is 1 MSPS. The power consumption of the device increases with the sampling rate, so it is recommended to use the lowest sampling rate necessary for the application to minimize power consumption.
  • The AD7091BCPZ-RL7 has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. The device also has a dedicated pin for the conversion result, which can be connected to a GPIO pin on the microcontroller or FPGA.
  • The AD7091BCPZ-RL7 has an operating temperature range of -40°C to 125°C. The device's accuracy can be affected by temperature, so it is recommended to use the device within the specified temperature range and to calibrate the device at the operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7091BCPZ-RL7 Overview

Use the download button to access the AD7091BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD709, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
