AD7091R-4BRUZ-RL7 - Analog Devices

Description: ► Ultralow system power ► Flexible power/throughput rate management ► Normal mode ► 1.4 mW at 1 MSPS ► Power-down mode ► 550 nA typical at VDD = 5.25 V ► 435 nA typical at VDD = 3 V ► Programmable ALERT interrupt pin (4-/8-channel models) ► High performance ► 1 MSPS throughput with no latency/pipeline delay ► SNR: 70 dB typical at 10 kHz input frequency ► THD: −80 dB typical at 10 kHz input frequency ► INL: ±0.7 LSB typical, ±1.0 LSB maximum ► Small system footprint ► On-chip accurate 2.5 V re

Download AD7091R-4BRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

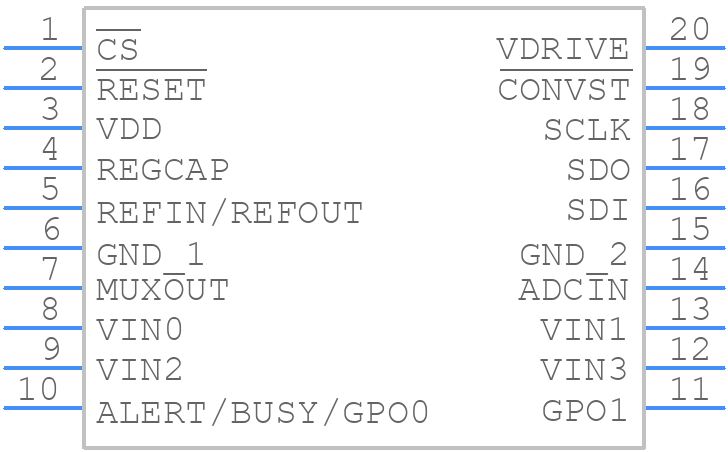

AD7091R-4BRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7091R-4BRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD7091R-4BRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD7091R-4BRUZ-RL7 Details

  • Manufacturer Part Number:

    AD7091R-4BRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    HVQCCN-24

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7091R-4BRUZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, place the ADC close to the analog signal source and use short traces to minimize noise pickup.
  • The AD7091R-4BRUZ-RL7 has an internal calibration feature that can be used to calibrate the ADC. The calibration process involves writing a specific code to the calibration register to initiate the calibration process. The device also has an offset and gain calibration feature that can be used to fine-tune the ADC's performance.
  • The maximum sampling rate of the AD7091R-4BRUZ-RL7 is 1 MSPS. The power consumption of the device increases with the sampling rate, so it's essential to consider the power consumption requirements of the system when selecting the sampling rate.
  • The AD7091R-4BRUZ-RL7 has a serial interface that can be connected to a microcontroller or FPGA. The device can be configured to operate in either SPI or I2C mode, and the interface protocol can be selected using the MODE pin. The device also has a dedicated pin for the conversion result, which can be connected to the microcontroller or FPGA.
  • The AD7091R-4BRUZ-RL7 has an operating temperature range of -40°C to 125°C. The device's performance may be affected by temperature variations, and the device's accuracy and linearity may degrade at extreme temperatures. It's essential to consider the operating temperature range when designing the system.
