AD7091R-4BRUZ - Analog Devices

Description: ► Ultralow system power ► Flexible power/throughput rate management ► Normal mode ► 1.4 mW at 1 MSPS ► Power-down mode ► 550 nA typical at VDD = 5.25 V ► 435 nA typical at VDD = 3 V ► Programmable ALERT interrupt pin (4-/8-channel models) ► High performance ► 1 MSPS throughput with no latency/pipeline delay ► SNR: 70 dB typical at 10 kHz input frequency ► THD: −80 dB typical at 10 kHz input frequency ► INL: ±0.7 LSB typical, ±1.0 LSB maximum ► Small system footprint ► On-chip accurate 2.5 V re

Download AD7091R-4BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

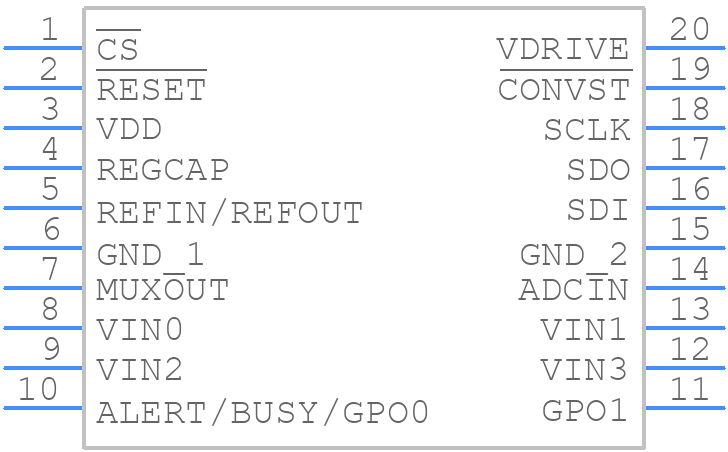

Symbol
AD7091R-4BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7091R-4BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD7091R-4BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD7091R-4BRUZ Details

  • Manufacturer Part Number:

    AD7091R-4BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7091R-4BRUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • To optimize the AD7091R-4BRUZ for low-power consumption, use the lowest possible clock frequency, disable the internal reference voltage, and use the power-down mode when not converting. Additionally, consider using a lower voltage supply and reducing the conversion rate.
  • The recommended calibration procedure for the AD7091R-4BRUZ involves a two-point calibration, where the device is calibrated at two known input voltages, typically 0V and the full-scale voltage. The calibration coefficients are then calculated and stored in the device's registers.
  • The AD7091R-4BRUZ has built-in error detection and correction mechanisms, such as the OVERRUN and UNDERFLOW flags. The device also has a built-in CRC error detection mechanism. The host controller should monitor these flags and take appropriate action, such as retrying the conversion or resetting the device.
  • The recommended interface protocol for communicating with the AD7091R-4BRUZ is a 4-wire SPI interface, with a clock frequency of up to 20 MHz. The device also supports a 3-wire SPI interface, but this is not recommended for new designs.
