AD7091R-8BRUZ-RL7 - Analog Devices

Description: 8-Channel, 1 MSPS, Ultralow Power, 12-Bit ADC in 24-Lead TSSOP

Download AD7091R-8BRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

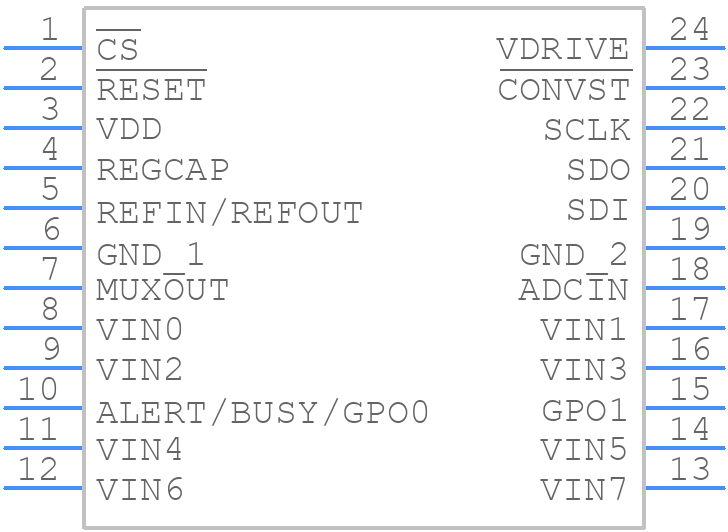

AD7091R-8BRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7091R-8BRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7091R-8BRUZ-RL7
click to zoom
3D Models
AD7091R-8BRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - AD7091R-8BRUZ-RL7
click to zoom

AD7091R-8BRUZ-RL7 Details

  • Manufacturer Part Number:

    AD7091R-8BRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.2768 V

  • Analog Input Voltage-Min:

    -3.2768 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0036%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.312 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7091R-8BRUZ-RL7 Frequently Asked Questions (FAQs)

  • Analog Devices recommends following a star-grounding scheme, keeping analog and digital grounds separate, and placing the ADC close to the analog signal source. Additionally, ensure that the device is placed away from high-frequency noise sources and that the PCB layout is designed to minimize electromagnetic interference (EMI).
  • To ensure accurate conversion results, it is essential to ensure that the AVDD and DVDD supplies are well-regulated and decoupled. Additionally, the analog input voltage should be within the specified range, and the reference voltage should be stable and accurate. It is also recommended to use a voltage reference with low noise and drift.
  • The recommended clock frequency for the AD7091R-8BRUZ-RL7 is between 1 MHz and 3 MHz. A higher clock frequency can increase the conversion rate but also increases power consumption. A lower clock frequency can reduce power consumption but may also reduce the conversion rate. The optimal clock frequency depends on the specific application requirements.
  • The AD7091R-8BRUZ-RL7 has internal overvoltage protection on the analog input pins, but it is still recommended to use external protection circuitry, such as voltage-limiting resistors or diodes, to prevent damage from excessive voltage levels. Additionally, ensure that the input voltage is within the specified range to prevent damage or inaccurate conversions.
  • The AD7091R-8BRUZ-RL7 has an internal calibration feature that can be used to calibrate the device. It is recommended to perform calibration during the manufacturing process or during system startup. The frequency of calibration depends on the specific application requirements and the desired level of accuracy.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7091R-8BRUZ-RL7 Overview

Use the download button to access the AD7091R-8BRUZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD709, or try a keyword search, such as Analog to Digital Converters
