AD712SQ/883B footprint, schematic symbol and 3D model by Analog Devices

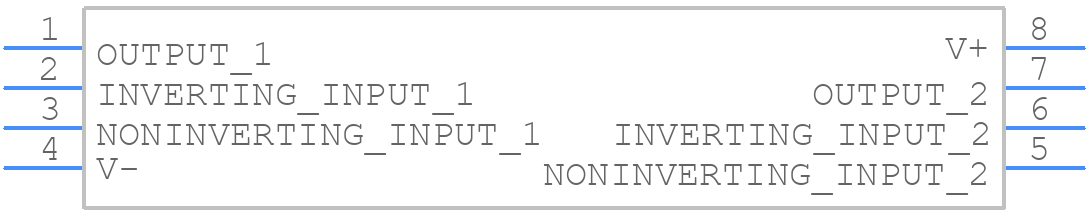

Symbol

click to zoom

PCB Footprints

AD712SQ/883B - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-8 [CERDIP]

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD712SQ/883B
Part Number AD712SQ/883B
Manufacturer Analog Devices
Pin Count 8
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - Q-8 [CERDIP]
Released Date May 20, 2022
Last Modified Date Nov 27, 2024 12:21 PM UTC
Pinout / Pin List Click Here (Member Only)

AD712SQ/883B Details

Manufacturer Part Number:
AD712SQ/883B
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Not Recommended
Part Package Code:
DIP
Package Description:
CERAMIC, DIP-8
Pin Count:
8
Manufacturer Package Code:
Q-8
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
3
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.000025 µA
Bias Current-Max (IIB) @25C:
0.0001 µA
Common-mode Reject Ratio-Min:
70 dB
Common-mode Reject Ratio-Nom:
80 dB
Frequency Compensation:
YES
Input Offset Current-Max (IIO):
0.026 µA
Input Offset Voltage-Max:
2000 µV
JESD-30 Code:
R-GDIP-T8
JESD-609 Code:
e0
Length:
10.29 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
NO
Neg Supply Voltage Limit-Max:
-18 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Equivalence Code:
DIP8,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Power:
YES
Programmable Power:
NO
Qualification Status:
Not Qualified
Screening Level:
MIL-STD-883 Class B
Seated Height-Max:
5.08 mm
Slew Rate-Min:
16 V/us
Slew Rate-Nom:
20 V/us
Supply Current-Max:
6.8 mA
Supply Voltage Limit-Max:
18 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Unity Gain BW-Nom:
4000
Voltage Gain-Min:
100000
Wideband:
NO
Width:
7.62 mm

AD712SQ/883B Frequently Asked Questions (FAQs)

The AD712SQ/883B requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the guidelines provided in the datasheet and application notes, such as keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
To optimize the AD712SQ/883B's performance for your specific application, you should consider factors such as the input signal range, sampling rate, and noise requirements. You can use the device's built-in calibration and diagnostic features to optimize its performance. Additionally, you can consult the datasheet and application notes for guidance on optimizing the device's performance for your specific use case.
To ensure the reliability and ruggedness of the AD712SQ/883B in harsh environments, you should consider factors such as temperature range, humidity, vibration, and electromagnetic interference (EMI). You should also follow proper handling and storage procedures, and ensure that the device is properly soldered and connected to the PCB. Additionally, you can consult the datasheet and application notes for guidance on ensuring the device's reliability and ruggedness in harsh environments.
To troubleshoot common issues with the AD712SQ/883B, you should first consult the datasheet and application notes for guidance on troubleshooting. You can also use the device's built-in diagnostic features to identify and isolate issues. Additionally, you can try to isolate the problem by checking the power supply, analog input, and digital output signals, and verifying that the device is properly configured and calibrated.
The AD712SQ/883B is a high-performance, low-power, 24-bit sigma-delta ADC with a unique set of features and specifications. Compared to other similar devices from Analog Devices Inc, the AD712SQ/883B offers higher resolution, lower noise, and lower power consumption. It also has a more flexible input range and a built-in calibration feature. You should consult the datasheet and application notes to determine which device is best suited for your specific application.

Trust Checks

Community Provided

System Verified

Community Approved

AD712SQ/883B Overview

Use the download button to access the AD712SQ/883B schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD712, or try a keyword search, such as Operational Amplifiers
