Part Image

AD7177-2BRUZ - Analog Devices

Description: Analog-in-Digital-Wandler - ADC 32 Bit SD-ADC 10ksps 2 Diff/4 SE Input

Download AD7177-2BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

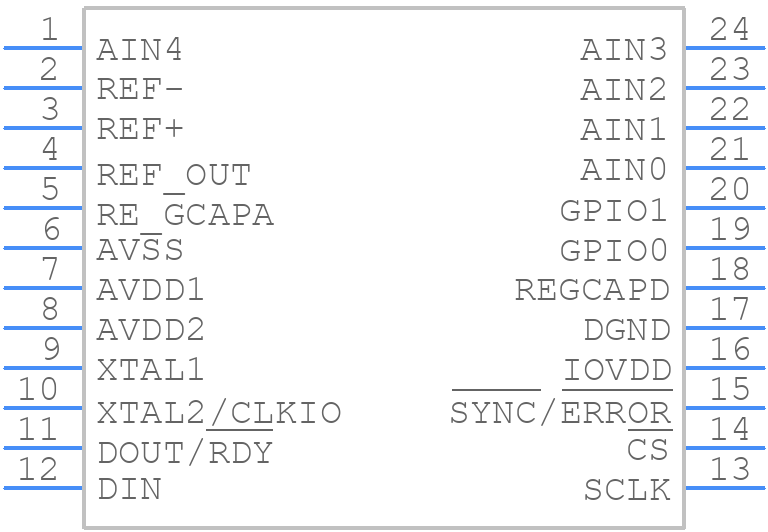

Symbol
AD7177-2BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7177-2BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
AD7177-2BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

AD7177-2BRUZ Details

  • Manufacturer Part Number:

    AD7177-2BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    7.8%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.01 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    5.2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7177-2BRUZ Frequently Asked Questions (FAQs)

  • The AD7177-2BRUZ is a sensitive analog device, and proper layout and placement are crucial. It's recommended to keep the device away from high-frequency sources, use a solid ground plane, and keep analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device, and the analog and digital power supplies should be separated.
  • To optimize the AD7177-2BRUZ's performance, use a low-noise power supply, minimize digital noise, and use a high-quality analog input filter. Additionally, ensure proper grounding, use a low-ESR capacitor for decoupling, and consider using a shielded enclosure to reduce electromagnetic interference.
  • The AD7177-2BRUZ requires a calibration procedure to ensure accurate measurements. The recommended procedure involves a full-scale calibration, followed by a zero-scale calibration. The device should be calibrated at multiple temperatures to ensure accuracy across the operating temperature range.
  • To troubleshoot common issues with the AD7177-2BRUZ, start by checking the power supply, analog input, and digital output connections. Ensure proper grounding, decoupling, and shielding. Check for noise sources, such as nearby high-frequency devices or electromagnetic interference. Use an oscilloscope to visualize the analog input and output signals, and consult the datasheet and application notes for guidance.
  • When selecting an external reference voltage for the AD7177-2BRUZ, consider the voltage range, noise performance, and temperature stability. Choose a reference voltage with low noise, low temperature coefficient, and high accuracy. Ensure the reference voltage is stable and well-regulated to maintain the AD7177-2BRUZ's accuracy and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7177-2BRUZ Overview

Use the download button to access the AD7177-2BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD717, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
