AD7190BRUZ-REEL - Analog Devices

Description: 4-Channel Single ADC Delta-Sigma 4.8ksps 24-bit Serial 24-Pin TSSOP T/R

Download AD7190BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

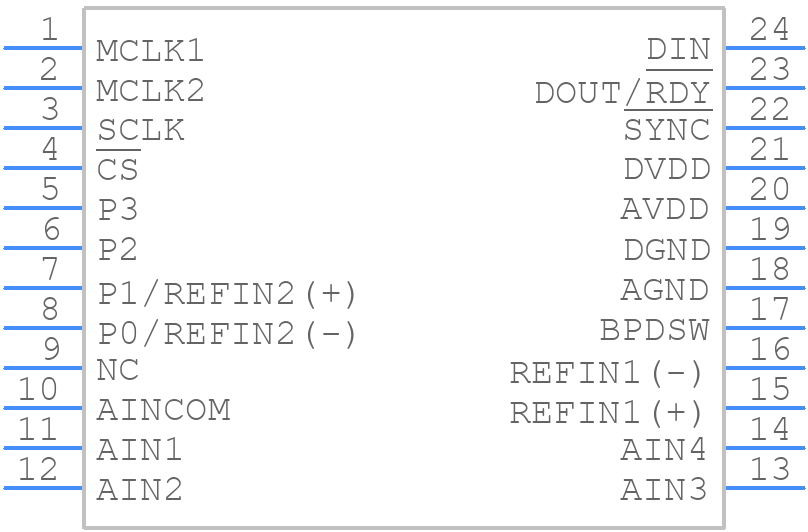

AD7190BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7190BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
AD7190BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

AD7190BRUZ-REEL Details

  • Manufacturer Part Number:

    AD7190BRUZ-REEL

  • Source Url Status Check Date:

    2013-05-01 14:56:16.776

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AD, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Conversion Time-Max:

    0.0002 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0005%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    6

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0048 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    6.75 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7190BRUZ-REEL Frequently Asked Questions (FAQs)

  • The AD7190BRUZ-REEL is a sensitive analog device, and its performance can be affected by the PCB layout and placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the device away from high-frequency sources and noise-generating components.
  • The AD7190BRUZ-REEL offers multiple analog input configurations. To optimize the configuration for your application, consider the input signal range, impedance, and noise levels. You may need to add external components, such as amplifiers or filters, to condition the input signal. Consult the datasheet and application notes for guidance.
  • The recommended power-up sequence for the AD7190BRUZ-REEL is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper operation.
  • The AD7190BRUZ-REEL requires calibration and trimming to achieve optimal performance. This can be done using the device's built-in calibration registers or through external calibration techniques. Consult the datasheet and application notes for guidance on calibration and trimming procedures.
  • The AD7190BRUZ-REEL is a sensitive analog device that can be affected by temperature. Ensure reliable operation over temperature by following proper thermal design practices, such as providing adequate heat sinking, using thermal interfaces, and minimizing thermal gradients. Consult the datasheet for thermal specifications and guidelines.
