AD7190BRUZ - Analog Devices

Description: Analog to Digital Converters - ADC 2ch UltraLow Noise 24Bit SD ADC IC.

Download AD7190BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

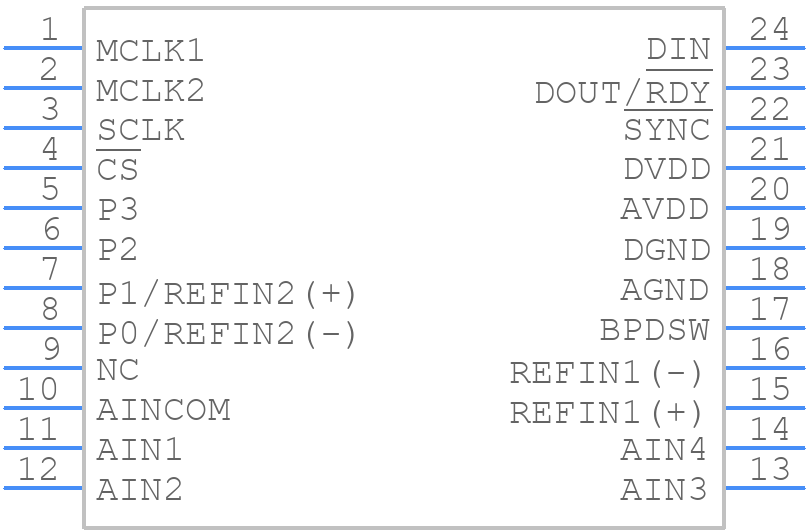

AD7190BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7190BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
AD7190BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

AD7190BRUZ Details

  • Manufacturer Part Number:

    AD7190BRUZ

  • Source Url Status Check Date:

    2013-05-01 14:56:16.775

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AD, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Conversion Time-Max:

    0.0002 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0005%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    6

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0048 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    6.75 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7190BRUZ Frequently Asked Questions (FAQs)

  • The AD7190BRUZ is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed close to the ADC's power pins.
  • To optimize the AD7190BRUZ's performance for low-noise applications, ensure that the analog input signals are properly filtered and buffered, use a low-noise voltage reference, and minimize digital noise coupling into the analog circuitry. Additionally, consider using a shielded enclosure and keep the ADC away from high-frequency sources.
  • The recommended clock frequency for the AD7190BRUZ is between 1.5 MHz and 4.5 MHz. However, the optimal clock frequency may vary depending on the specific application and noise requirements. It is recommended to consult the datasheet and application notes for more information.
  • The AD7190BRUZ has built-in offset and gain error correction capabilities. The offset error can be calibrated out using the ADC's internal offset calibration feature, while the gain error can be corrected using an external calibration resistor. Consult the datasheet and application notes for more information on calibration procedures.
  • The maximum sampling rate of the AD7190BRUZ is 4.8 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and other factors. Consult the datasheet and application notes for more information on achieving the maximum sampling rate.
