AD7192BRUZ-REEL - Analog Devices

Description: 4.8 kHz Ultra-Low Noise 24-Bit Sigma-Delta ADC with PGA

Download AD7192BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

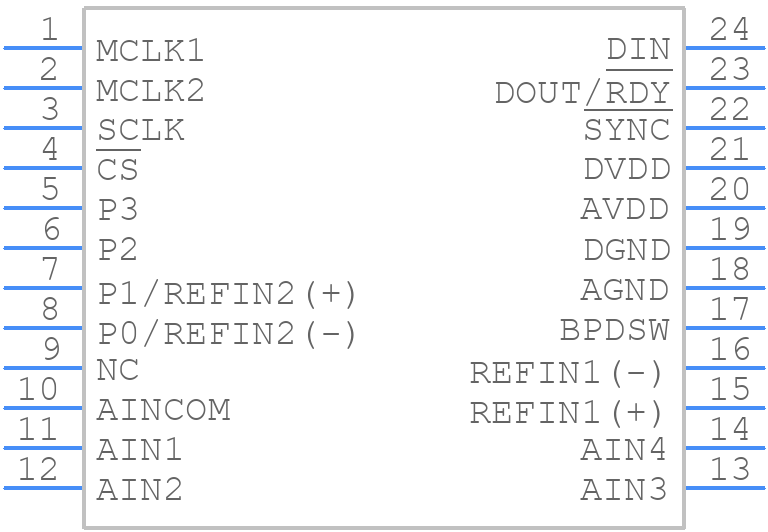

AD7192BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7192BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24
click to zoom
3D Models
AD7192BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-24
click to zoom

AD7192BRUZ-REEL Details

  • Manufacturer Part Number:

    AD7192BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AD, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3 V

  • Analog Input Voltage-Min:

    -3 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    6

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.0048 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7192BRUZ-REEL Frequently Asked Questions (FAQs)

  • The AD7192BRUZ-REEL is a sensitive analog device, and proper layout and placement are crucial. It is recommended to keep the device away from high-frequency signals, use a solid ground plane, and minimize the length of analog signal traces. Additionally, decoupling capacitors should be placed close to the device to reduce noise.
  • Accurate calibration of the AD7192BRUZ-REEL requires careful attention to detail. It is recommended to follow the calibration procedure outlined in the datasheet, which includes setting the gain and offset registers, and performing a system calibration using a known input signal. Additionally, it is important to ensure that the device is operated within its specified temperature range and that the input signal is within the specified range.
  • To ensure optimal performance, it is recommended to use a well-regulated power supply with low noise and ripple. Decoupling capacitors (e.g., 10uF and 100nF) should be placed close to the device, and a pi-filter or a ferrite bead can be used to filter out high-frequency noise. Additionally, it is recommended to use a separate analog power supply for the AD7192BRUZ-REEL to minimize digital noise coupling.
  • To troubleshoot common issues with the AD7192BRUZ-REEL, it is recommended to follow a systematic approach. First, verify that the device is properly powered and configured. Check for noise sources, such as nearby high-frequency signals or switching power supplies. Ensure that the input signal is within the specified range and that the device is operated within its specified temperature range. Use oscilloscopes or logic analyzers to visualize the signals and identify potential issues.
  • To minimize EMI, it is recommended to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding parallel traces. Additionally, it is recommended to use shielding, such as a metal can or a shielded enclosure, to reduce radiated emissions. Ensure that the AD7192BRUZ-REEL is placed away from high-frequency sources, such as switching power supplies or antennas.
