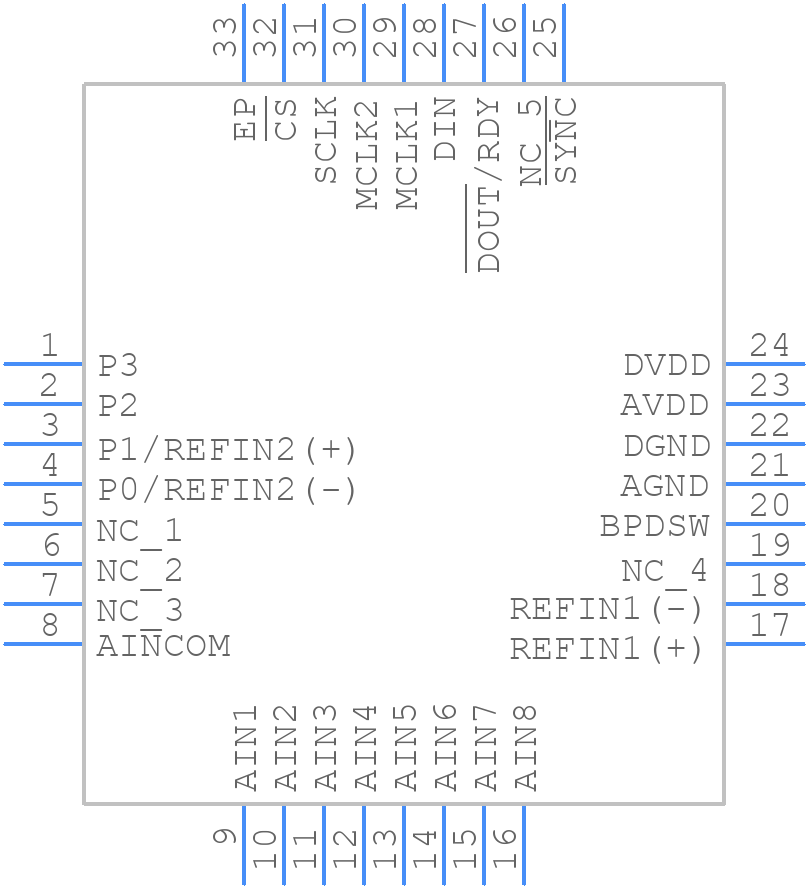

AD7193BCPZ-RL7 - Analog Devices

AD7193BCPZ-RL7 Frequently Asked Questions (FAQs)

• What is the recommended layout and placement for the AD7193BCPZ-RL7 to minimize noise and ensure optimal performance?
  The AD7193BCPZ-RL7 is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed close to the ADC's power pins.
• How do I calibrate the AD7193BCPZ-RL7 to achieve the highest accuracy?
  The AD7193BCPZ-RL7 has an internal calibration mechanism, but it may require additional external calibration to achieve the highest accuracy. This can be done by applying a known input voltage and adjusting the ADC's offset and gain registers accordingly. The calibration process should be repeated at different temperatures and input ranges to ensure optimal performance.
• What is the maximum sampling rate of the AD7193BCPZ-RL7, and how does it affect the power consumption?
  The maximum sampling rate of the AD7193BCPZ-RL7 is 4.8 kSPS. The power consumption of the ADC increases with the sampling rate, so it's essential to balance the sampling rate with power consumption requirements. The ADC's power-down mode can be used to reduce power consumption when the ADC is not in use.
• How do I interface the AD7193BCPZ-RL7 with a microcontroller or FPGA?
  The AD7193BCPZ-RL7 has a serial interface (SPI-compatible) that can be easily interfaced with a microcontroller or FPGA. The ADC's data output can be connected to the microcontroller's or FPGA's SPI input, and the clock signal can be generated by the microcontroller or FPGA. The interface can be configured to use a 3-wire or 4-wire interface, depending on the application requirements.
• What is the effect of temperature on the AD7193BCPZ-RL7's performance, and how can I compensate for temperature drift?
  The AD7193BCPZ-RL7's performance can be affected by temperature changes, which can cause offset and gain drift. To compensate for temperature drift, it's essential to use a temperature sensor to monitor the ADC's temperature and adjust the offset and gain registers accordingly. Additionally, the ADC's internal temperature sensor can be used to monitor the die temperature and adjust the ADC's performance accordingly.
