AD7266BCPZ-REEL7 - Analog Devices

Description: Analog to Digital Converters - ADC Dual 2 MSPS, 12-Bit, 3Chan Sars ADC I.C.

Download AD7266BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

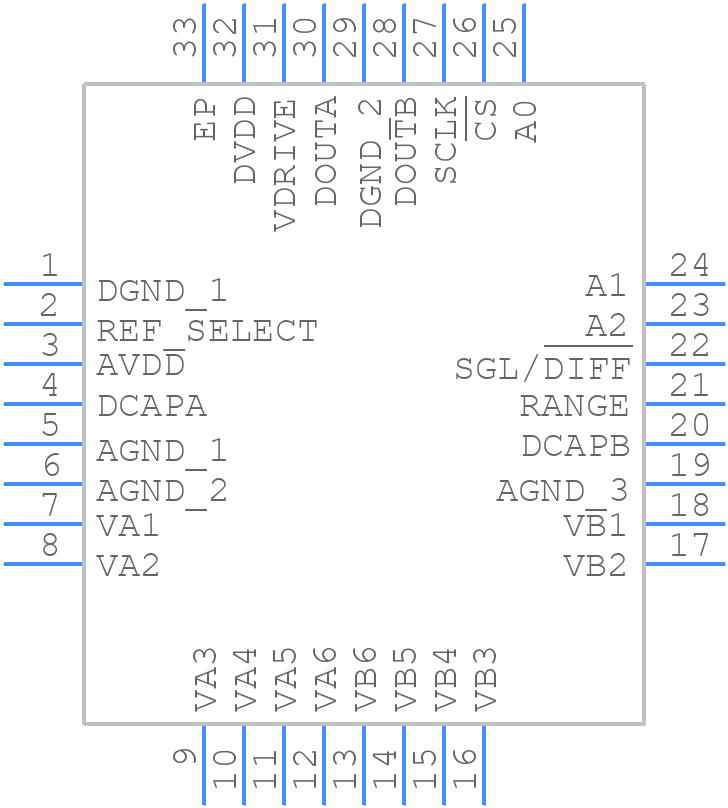

AD7266BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7266BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-7)
click to zoom
3D Models
AD7266BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-7)
click to zoom

AD7266BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD7266BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.4375 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    3

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6.4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD7266BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input signals away from the digital signals and use shielding if possible.
  • The AD7266BCPZ-REEL7 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing a specific code to the calibration register to initiate the calibration process. The device will then adjust its internal gain and offset to ensure accurate conversions.
  • The maximum sampling rate of the AD7266BCPZ-REEL7 is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the input signal's bandwidth, and the device's settling time.
  • The AD7266BCPZ-REEL7 outputs 16-bit data in a twos-complement format. The output data can be handled by using a microcontroller or a digital signal processor to read the data from the device's output pins. The data can then be processed and analyzed as needed.
  • The power consumption of the AD7266BCPZ-REEL7 is typically around 15 mW at a supply voltage of 3.3 V. To reduce power consumption, the device can be operated at a lower supply voltage, and the power-down mode can be used when the device is not in use.
