AD7266BCPZ - Analog Devices

Description: Analog Devices AD7266BCPZ, 12 bit Serial ADC, Dual Differential Input, 32-Pin LFCSP VQ

Download AD7266BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

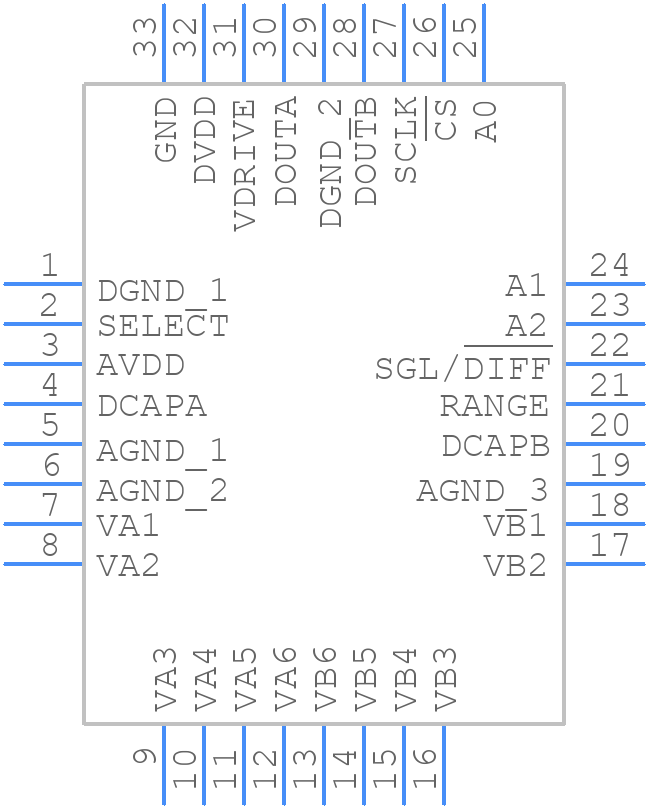

AD7266BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7266BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-7
click to zoom
3D Models
AD7266BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-7
click to zoom

AD7266BCPZ Details

  • Manufacturer Part Number:

    AD7266BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.4375 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    3

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6.4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD7266BCPZ Frequently Asked Questions (FAQs)

  • The AD7266BCPZ is a high-speed, high-precision ADC, and as such, it requires careful layout and placement to achieve optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling.
  • To optimize the AD7266BCPZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct sampling rate, input range, and gain settings. Additionally, consider the noise floor, signal-to-noise ratio, and distortion requirements of your application. Consult the datasheet and application notes for guidance on optimizing performance.
  • When using the AD7266BCPZ in a multi-channel system, it is essential to consider the channel-to-channel crosstalk, noise coupling, and synchronization requirements. Ensure that each channel is properly isolated, and consider using a separate analog supply and reference voltage for each channel. Additionally, synchronize the conversions of each channel to minimize noise and ensure accurate results.
  • The AD7266BCPZ outputs 16-bit digital data, which requires careful handling to maintain data integrity. Ensure that the digital output is properly terminated, and consider using a FIFO or buffer to handle the high-speed data output. Additionally, consider using a digital signal processor or microcontroller to process the output data and perform any necessary calculations or formatting.
  • The AD7266BCPZ is a high-power device that requires proper thermal management to maintain reliability and performance. Ensure that the device is mounted on a suitable heat sink, and consider using thermal interface materials to improve heat transfer. Additionally, ensure that the device is operated within its recommended temperature range to prevent overheating and damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7266BCPZ Overview

Use the download button to access the AD7266BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD726, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
