AD7266BSUZ-REEL - Analog Devices

Description: Analog to Digital Converters - ADC Dual 2 MSPS, 12-Bit, 3Chan Sars ADC I.C.

Download AD7266BSUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

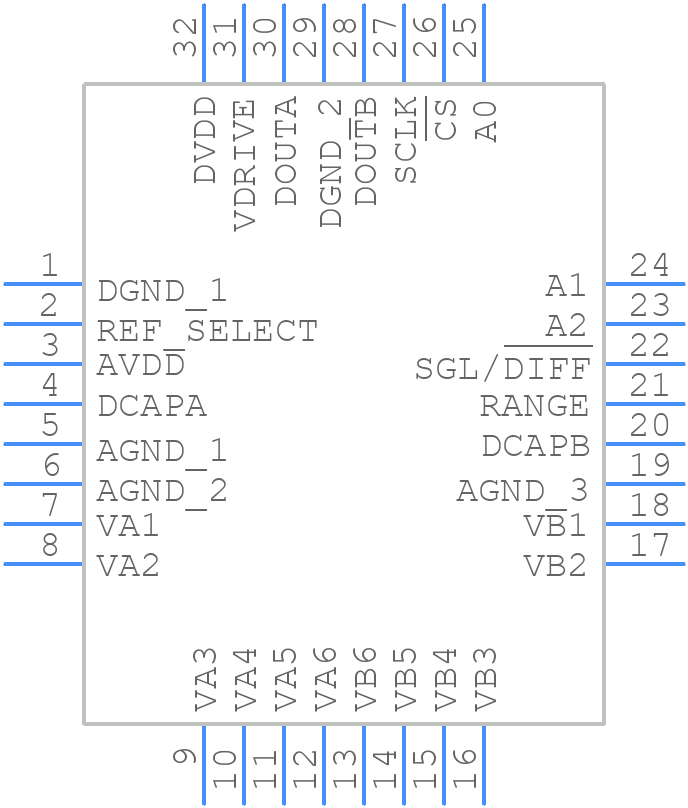

Symbol
AD7266BSUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7266BSUZ-REEL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-Lead Thin Quad Flat Package [TQFP] (SU-32-2)-1
click to zoom
3D Models
AD7266BSUZ-REEL - Analog Devices - 3D model - Quad Flat Packages - 32-Lead Thin Quad Flat Package [TQFP] (SU-32-2)-1
click to zoom

AD7266BSUZ-REEL Details

  • Manufacturer Part Number:

    AD7266BSUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.4375 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    3

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    6.4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD7266BSUZ-REEL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, place the AD7266BSUZ-REEL close to the analog signal sources and keep the digital signals away from the analog signals.
  • The AD7266BSUZ-REEL requires a specific power-up and power-down sequencing to prevent damage or incorrect operation. The recommended sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the interface clock (CLK). During power-down, the sequence should be reversed.
  • The recommended clock frequency for the AD7266BSUZ-REEL is between 1 MHz and 50 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. A clock signal with excessive jitter or noise can affect the performance of the AD7266BSUZ-REEL.
  • The AD7266BSUZ-REEL requires calibration to achieve optimal performance and accuracy. The calibration process involves adjusting the offset and gain of the ADC to match the specific application requirements. The calibration process can be done using the AD7266BSUZ-REEL's built-in calibration registers or through external calibration using a microcontroller or other external device.
  • The AD7266BSUZ-REEL uses a serial interface protocol, and the recommended data format is a 16-bit or 24-bit twos-complement format. The interface protocol can be either a SPI (Serial Peripheral Interface) or a QSPI (Quad Serial Peripheral Interface) protocol, depending on the specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7266BSUZ-REEL Overview

Use the download button to access the AD7266BSUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD726, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
