AD7274BRMZ - Analog Devices

Description: ADC Single SAR 3MSPS 12-Bit Serial

Download AD7274BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

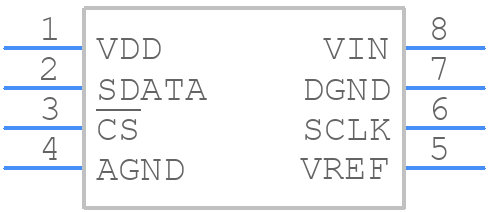

Symbol
AD7274BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7274BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7922ARMZ
click to zoom
3D Models
AD7274BRMZ - Analog Devices - 3D model - Small Outline Packages - AD7922ARMZ
click to zoom

AD7274BRMZ Details

  • Manufacturer Part Number:

    AD7274BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.6 V

  • Conversion Time-Max:

    0.291 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    3 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7274BRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, place the AD7274BRMZ close to the analog signal sources and use short traces to minimize noise pickup.
  • The AD7274BRMZ has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has a self-calibration feature that can be initiated by setting the SCAL bit. It is recommended to perform a full-scale calibration after power-up and after any changes to the reference voltage or input range.
  • The recommended power-up sequence is to first apply the analog supply voltage (AVDD) and then the digital supply voltage (DVDD). The digital supply voltage should be applied after the analog supply voltage has reached its nominal value. This ensures that the internal analog circuits are powered up before the digital circuits.
  • The AD7274BRMZ has internal overvoltage protection on the analog input pins, but it is still recommended to use external protection devices such as voltage-limiting resistors or diodes to prevent damage from excessive voltage levels.
  • The AD7274BRMZ can be interfaced with a microcontroller or digital signal processor using a standard SPI interface. The device can be operated in slave mode, and the microcontroller or digital signal processor can be used to control the conversion process and read the conversion results.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7274BRMZ Overview

Use the download button to access the AD7274BRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD727, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
