AD7274BUJZ-REEL7 - Analog Devices

Description: 12 Bit Analog to Digital Converter 1 Input 1 SAR TSOT-23-8 , 2.35V ~ 3.6V , -40°C ~ 125°C

Download AD7274BUJZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

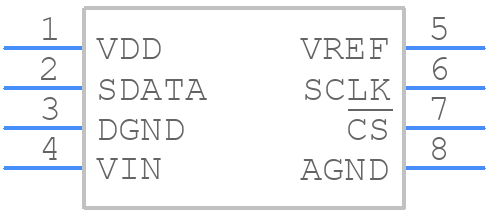

AD7274BUJZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7274BUJZ-REEL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - UJ-8
click to zoom
3D Models
AD7274BUJZ-REEL7 - Analog Devices - 3D model - SOT23 (8-Pin) - UJ-8
click to zoom

AD7274BUJZ-REEL7 Details

  • Manufacturer Part Number:

    AD7274BUJZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-193-BA, TSOT-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.6 V

  • Conversion Time-Max:

    0.291 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    3 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD7274BUJZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7274BUJZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane. The datasheet provides a recommended layout and routing diagram, but it's also recommended to consult with an experienced PCB designer or Analog Devices' application notes for more detailed guidance.
  • The AD7274BUJZ-REEL7 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing a specific code to the device's calibration register, which adjusts the internal offset and gain to optimize the device's performance. The datasheet provides a detailed calibration procedure, and it's also recommended to consult with Analog Devices' application notes and technical support for more guidance.
  • The maximum sampling rate of the AD7274BUJZ-REEL7 is 1 MSPS, and it can be achieved by using the device's internal clock or an external clock source. The power consumption of the device increases with the sampling rate, and it's recommended to consult the datasheet's power consumption vs. sampling rate graph to determine the device's power consumption at a specific sampling rate.
  • The AD7274BUJZ-REEL7 can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. The recommended communication protocol is SPI, and the datasheet provides a detailed description of the SPI interface and communication protocol. It's also recommended to consult with Analog Devices' application notes and technical support for more guidance on interfacing the device with a specific microcontroller or FPGA.
  • The AD7274BUJZ-REEL7 has a maximum junction temperature of 150°C, and it's recommended to keep the device's temperature below 125°C to ensure optimal reliability. The device's thermal management considerations include using a heat sink, ensuring good airflow, and minimizing the device's power consumption. The datasheet provides a detailed thermal management section, and it's also recommended to consult with Analog Devices' application notes and technical support for more guidance.
