AD7276BRMZ - Analog Devices

Description: AD7276BRMZ, 12-Bit Analogue to Digital Converter, SPI, Microwire, 8-Pin MSOP

Download AD7276BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

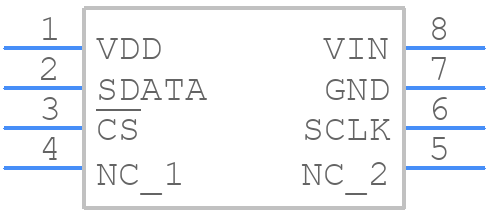

AD7276BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7276BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)
click to zoom
3D Models
AD7276BRMZ - Analog Devices - 3D model - Small Outline Packages - (RM-8)
click to zoom

AD7276BRMZ Details

  • Manufacturer Part Number:

    AD7276BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.6 V

  • Conversion Time-Max:

    0.291 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    3 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7276BRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, place the AD7276BRMZ close to the analog signal sources and use short traces to minimize noise pickup.
  • The AD7276BRMZ has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an internal voltage reference that can be calibrated using the VREFIN pin. It is recommended to follow the calibration procedure outlined in the datasheet to ensure accurate conversions.
  • The AD7276BRMZ can achieve a maximum sampling rate of 1 MSPS (million samples per second) in the fast mode, and 500 kSPS in the normal mode. However, the actual sampling rate may be limited by the system's clock frequency, the conversion mode, and the interface mode.
  • The AD7276BRMZ has a POR circuit that resets the device during power-up, and a BOR circuit that resets the device during power-down. To handle these features, ensure that the power supply is stable and within the recommended operating range, and that the device is properly reset after power-up or power-down.
  • It is recommended to use a 10 μF capacitor in parallel with a 100 nF capacitor to decouple the power supply pins (VDD and VSS) of the AD7276BRMZ. This helps to filter out noise and ensure stable operation.
