AD7284WBSWZ - Analog Devices

Description: Battery Management 8 Ch Li-ion Monitor ISO26262/Auto

Download AD7284WBSWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD7284WBSWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

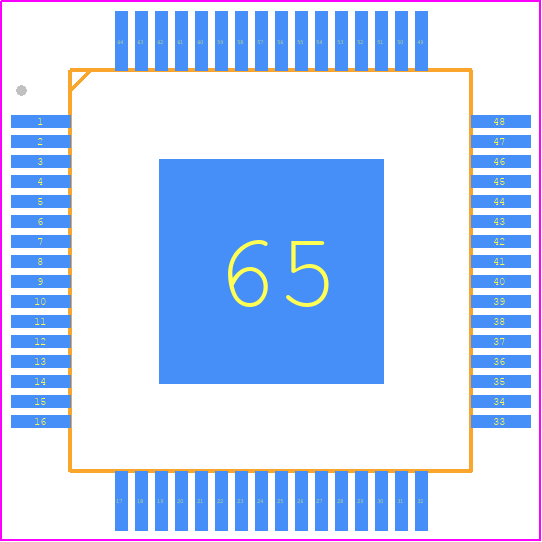

AD7284WBSWZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SW-64-2_2025
click to zoom
3D Models
AD7284WBSWZ - Analog Devices - 3D model - Quad Flat Packages - SW-64-2_2025
click to zoom

AD7284WBSWZ Details

  • Manufacturer Part Number:

    AD7284WBSWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LQFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    SW-64-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-05-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

AD7284WBSWZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the power supply decoupling and place it close to the device.
  • To ensure accuracy, calibrate the device using a known temperature source, use a high-accuracy thermistor, and ensure good thermal contact between the thermistor and the device being measured. Also, use the internal temperature sensor calibration feature to compensate for any offset errors.
  • The maximum cable length depends on the type of cable used, but as a general rule, a 20-meter cable length is recommended for optimal performance. However, longer cable lengths can be used with proper shielding and termination to minimize noise and signal degradation.
  • The AD7284WBSWZ has a power-on reset circuit that ensures the device starts up in a known state. The startup sequence involves a power-on reset, followed by a calibration cycle, and then the device is ready for operation. Ensure that the power supply is stable and the device has sufficient time to complete its startup sequence before using it.
  • The AD7284WBSWZ can be interfaced with a microcontroller or FPGA using a standard SPI interface. Ensure that the interface is properly configured, and the clock frequency is within the recommended range. Also, use a level shifter if the voltage levels are not compatible.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7284WBSWZ Overview

Use the download button to access the AD7284WBSWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD728, or try a keyword search, such as Power Management Circuits
