AD7306ARZ - Analog Devices

Description: Analog Devices AD7306ARZ, Line Transceiver, EIA-232/ EIA-422/ RS-232/ RS-422 3-TX 2-RX, 5 V, 24-Pin SOIC

Download AD7306ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

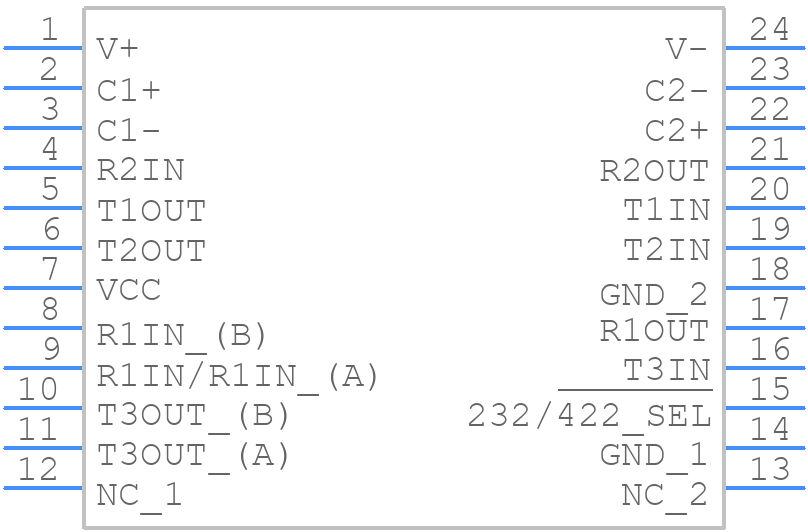

AD7306ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7306ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD7306ARZ - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD7306ARZ Details

  • Manufacturer Part Number:

    AD7306ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CONFIGURABLE INTERFACE STANDARDS; EXTERNAL CHARGE PUMP

  • Differential Output:

    YES

  • Driver Number of Bits:

    3

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; EIA-422

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    100 ns

  • Width:

    7.5 mm

AD7306ARZ Frequently Asked Questions (FAQs)

  • The AD7306ARZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7306ARZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain setting, adjusting the bandwidth, and optimizing the power supply. Additionally, consider the input signal range, output voltage swing, and noise tolerance to ensure the device operates within its specifications.
  • The AD7306ARZ has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to provide adequate heat sinking and thermal management. This includes using a heat sink, ensuring good airflow, and avoiding high ambient temperatures.
  • Common issues with the AD7306ARZ include noise, oscillations, and incorrect output voltages. To troubleshoot these issues, check the power supply, input signals, and output loading. Ensure that the device is properly decoupled, and the layout is optimized for minimal noise. If issues persist, consult the datasheet and application notes for guidance.
  • The AD7306ARZ has built-in ESD protection, but it is still essential to follow proper handling and assembly procedures to prevent damage. Use anti-static wrist straps, mats, and bags to prevent static discharge. Additionally, ensure that the device is properly soldered and handled during assembly.
