AD7323BRUZ-REEL - Analog Devices

Description: Analog to Digital Converters - ADC 4-Channel,12-Bit+Sign Bipolar Input ADC

Download AD7323BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

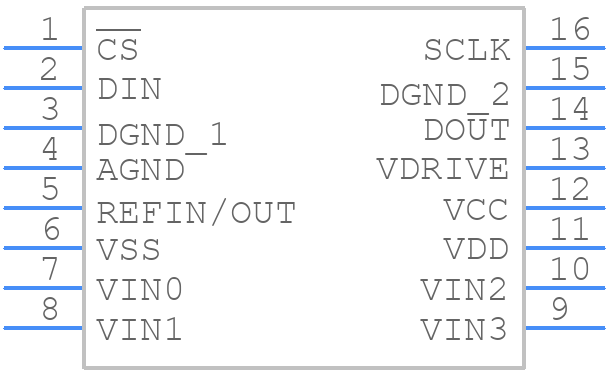

AD7323BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7323BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 PIN TSSOP
click to zoom
3D Models
AD7323BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - 16 PIN TSSOP
click to zoom

AD7323BRUZ-REEL Details

  • Manufacturer Part Number:

    AD7323BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    1.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0269%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7323BRUZ-REEL Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7323BRUZ-REEL involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals under the analog signal traces.
  • To properly configure the AD7323BRUZ-REEL, you need to consider the input range, gain, and sampling rate required for your application. You should also consult the datasheet and application notes to determine the correct register settings and programming sequence. Additionally, you may need to perform calibration and trimming to optimize the performance of the device.
  • Potential sources of error when using the AD7323BRUZ-REEL include noise, offset, gain, and nonlinearity errors. To minimize these errors, you should ensure proper layout and routing, use a clean and stable power supply, and implement proper filtering and shielding. Additionally, you should consider using techniques such as averaging and calibration to improve the accuracy of the measurements.
  • The AD7323BRUZ-REEL can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. You need to ensure that the interface is properly configured and that the clock and data signals are properly synchronized. You should also consult the datasheet and application notes for specific guidance on interfacing the AD7323BRUZ-REEL with your chosen microcontroller or FPGA.
  • The AD7323BRUZ-REEL is a high-performance analog-to-digital converter that can generate heat during operation. To ensure reliable operation, you should ensure that the device is properly mounted and that there is adequate airflow around the device. You should also consider using thermal management techniques such as heat sinks or thermal interfaces to dissipate heat.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7323BRUZ-REEL Overview

Use the download button to access the AD7323BRUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD732, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
