AD7327TRU-EP-RL7 - Analog Devices

Description: Analog to Digital Converters - ADC 8-Channel 12-Bit + Sign Bipola InputADC

Download AD7327TRU-EP-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

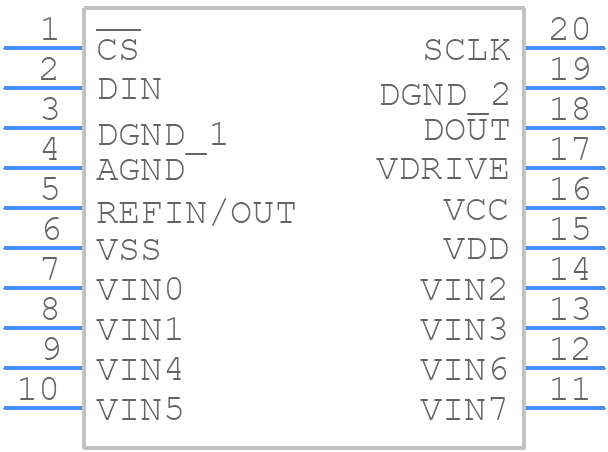

AD7327TRU-EP-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7327TRU-EP-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Thin Shrink Small Outline Package [TSSOP]
click to zoom
3D Models
AD7327TRU-EP-RL7 - Analog Devices - 3D model - Small Outline Packages - 20-Lead Thin Shrink Small Outline Package [TSSOP]
click to zoom

AD7327TRU-EP-RL7 Details

  • Manufacturer Part Number:

    AD7327TRU-EP-RL7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-20

  • ECCN Code:

    3A001.a.2.c

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    1.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0305%

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.195 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD7327TRU-EP-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7327TRU-EP-RL7 can be found in the AD7327 Evaluation Board documentation and the AD7327 Layout and Routing Guidelines application note. These resources provide guidance on how to minimize noise and ensure optimal performance.
  • The AD7327TRU-EP-RL7 does not require calibration. It has an internal calibration circuit that ensures accurate conversions. However, if you need to perform a system-level calibration, you can use the AD7327's offset and gain adjustment registers to trim the output values.
  • The maximum sampling rate of the AD7327TRU-EP-RL7 is 1 MSPS (million samples per second). However, this rate can be affected by the clock frequency, conversion mode, and other system-level factors. Refer to the datasheet and application notes for more information.
  • Yes, the AD7327TRU-EP-RL7 is a multi-channel ADC, and it can be used in multi-channel applications. It has four analog input channels, and you can configure the device to scan through these channels in a sequential or simultaneous manner.
  • The power consumption of the AD7327TRU-EP-RL7 depends on the operating mode, clock frequency, and other factors. Typically, the device consumes around 15 mW of power when operating at 1 MSPS. Refer to the datasheet for more detailed power consumption information.
