AD7329BRUZ-REEL - Analog Devices

Description: Analog to Digital Converters - ADC 8-Channel12-Bit+Sign MUX Out Bipolar ADC

Download AD7329BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

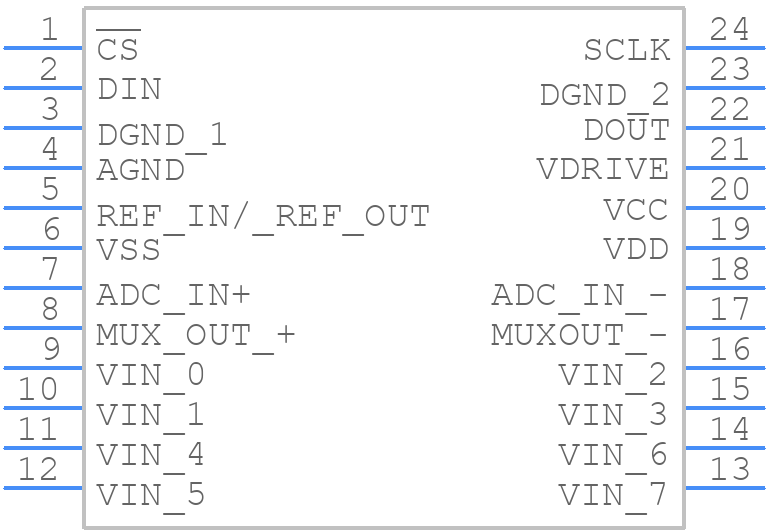

AD7329BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7329BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
AD7329BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

AD7329BRUZ-REEL Details

  • Manufacturer Part Number:

    AD7329BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AD, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0269%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7329BRUZ-REEL Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7329BRUZ-REEL involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground layer and to avoid running digital signals under the analog signal traces.
  • To ensure proper calibration and configuration of the AD7329BRUZ-REEL, it is recommended to follow the calibration procedure outlined in the datasheet, which involves setting the gain and offset registers to the desired values. Additionally, the user should consult the application notes and evaluation board documentation provided by Analog Devices Inc for specific guidance on configuring the device for their application.
  • The AD7329BRUZ-REEL has a maximum junction temperature of 150°C, and it is recommended to keep the device temperature below 125°C for optimal performance. To ensure proper thermal management, the user should provide adequate heat sinking, use a thermally conductive PCB material, and avoid blocking airflow around the device.
  • To troubleshoot common issues with the AD7329BRUZ-REEL, the user should first consult the datasheet and application notes for guidance on troubleshooting procedures. Additionally, the user can use tools such as oscilloscopes and logic analyzers to debug the issue, and should verify that the device is properly configured and calibrated.
  • The AD7329BRUZ-REEL has built-in ESD protection, but it is still recommended to take precautions to prevent electrostatic discharge. The user should handle the device by the body, use an ESD wrist strap or mat, and ensure that the PCB is properly grounded. Additionally, the user should follow proper soldering and assembly procedures to prevent damage to the device.
