AD7329BRUZ-REEL7 - Analog Devices

Description: Analog to Digital Converters - ADC 8-Channel12-Bit+Sign MUX Out Bipolar ADC

Download AD7329BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

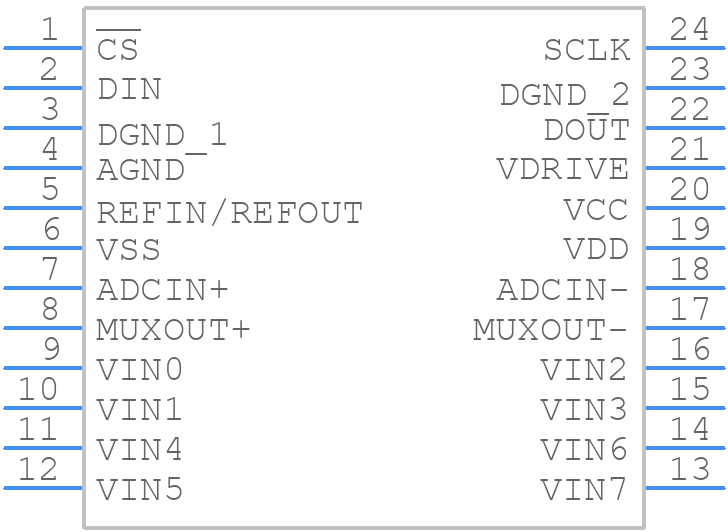

Symbol
AD7329BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7329BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
AD7329BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

AD7329BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD7329BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AD, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0269%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7329BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7329BRUZ-REEL7 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground layer and to avoid running digital signals under the analog signal traces.
  • To ensure the accuracy and linearity of the AD7329BRUZ-REEL7's analog-to-digital conversion, it is recommended to use a high-quality voltage reference, ensure proper power supply decoupling, and minimize noise on the analog input signals. Additionally, the device should be operated within its specified temperature range and the input signals should be within the device's specified input range.
  • The maximum sampling rate that can be achieved with the AD7329BRUZ-REEL7 is 1 MSPS (million samples per second). However, this rate may be limited by the specific application and the quality of the analog input signals.
  • The AD7329BRUZ-REEL7 can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) interface. The device's digital output data can be connected to the microcontroller or FPGA's digital input pins, and the device's control signals (such as CS and SCLK) can be connected to the microcontroller or FPGA's digital output pins.
  • The power consumption of the AD7329BRUZ-REEL7 is typically around 15 mW at a supply voltage of 3.3 V. To minimize power consumption, the device can be operated at a lower supply voltage, the sampling rate can be reduced, and the device can be placed in a low-power mode when not in use.
