AD73311LARUZ - Analog Devices

Description: ANALOG DEVICES - AD73311LARUZ - Audio Codec, Low Power, General Purpose, 1, 1, -40 °C, 105 °C, 64 kSPS

Download AD73311LARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

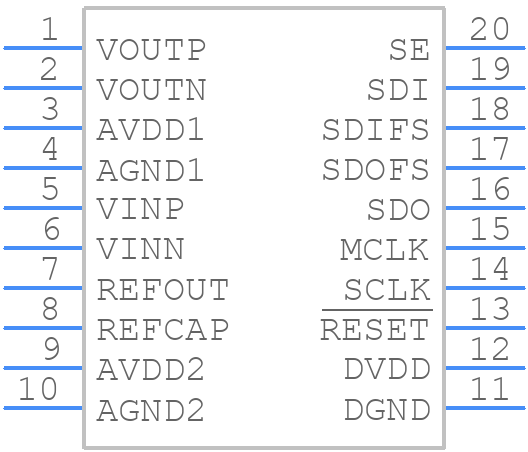

AD73311LARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD73311LARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)_1
click to zoom
3D Models
AD73311LARUZ - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)_1
click to zoom

AD73311LARUZ Details

  • Manufacturer Part Number:

    AD73311LARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.0125 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD73311LARUZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the analog input signals. This ensures proper device operation and prevents damage to the device.
  • To optimize performance in noisy environments, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding the device from electromagnetic interference (EMI). Additionally, consider using a low-pass filter or a band-pass filter to reject out-of-band noise.
  • The maximum input voltage that the AD73311LARUZ can handle is 5.5V. Exceeding this voltage may damage the device. Ensure that the input voltage is within the recommended range to ensure proper device operation.
  • Calibration involves adjusting the internal gain and offset of the device to optimize its performance. Refer to the datasheet for the recommended calibration procedure, which typically involves applying a known input signal and adjusting the gain and offset registers accordingly.
  • The maximum clock frequency that the AD73311LARUZ can support is 50 MHz. Exceeding this frequency may result in incorrect data conversion or device malfunction.
