AD73360LARZ-REEL - Analog Devices

Description: AFE General Purpose 6ADC 16bit 3.3V 28-Pin SOIC W T/R

Download AD73360LARZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

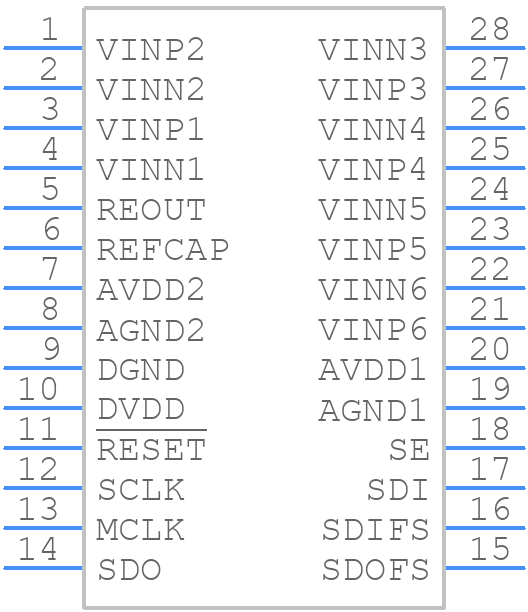

AD73360LARZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD73360LARZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-28
click to zoom
3D Models
AD73360LARZ-REEL - Analog Devices - 3D model - Small Outline Packages - R-28
click to zoom

AD73360LARZ-REEL Details

  • Manufacturer Part Number:

    AD73360LARZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RW-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD73360LARZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD73360LARZ-REEL involves keeping analog and digital signals separate, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize performance in a noisy environment, use proper shielding, filtering, and grounding techniques. Additionally, consider using a common-mode filter or a ferrite bead to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the AD73360LARZ-REEL is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the interface clock (CLK).
  • To troubleshoot issues with the AD73360LARZ-REEL, start by checking the power supply voltages, clock signals, and digital interface signals. Use an oscilloscope to verify signal integrity and check for noise or distortion. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The AD73360LARZ-REEL is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications.
