AD7366BRUZ - Analog Devices

Description: AD7366BRUZ, 12-Bit Analogue to Digital Converter, Dual, SPI, Microwire, 24-Pin TSSOP

Download AD7366BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

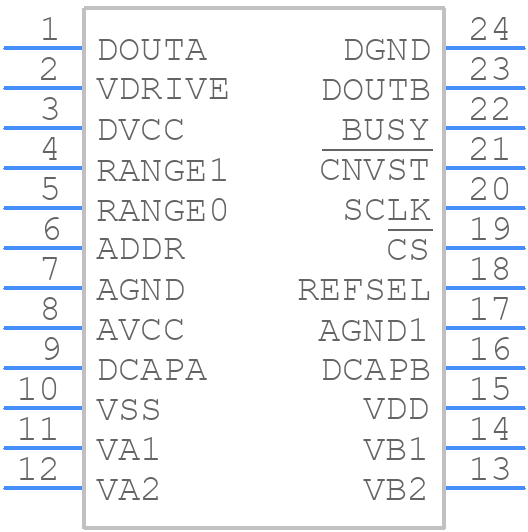

AD7366BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7366BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7366BRUZ
click to zoom
3D Models
AD7366BRUZ - Analog Devices - 3D model - Small Outline Packages - AD7366BRUZ
click to zoom

AD7366BRUZ Details

  • Manufacturer Part Number:

    AD7366BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AD, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    0.61 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -16.5 V

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    16.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7366BRUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the AVDD pin.
  • To optimize the AD7366BRUZ for low-power operation, use the lowest possible clock frequency, disable the internal reference, and use the power-down mode when not in use. Additionally, consider using a lower supply voltage and reducing the input signal amplitude.
  • The recommended input signal amplitude for the AD7366BRUZ is between 100mV to 2V peak-to-peak, and the frequency range is up to 50kHz. However, the device can handle input frequencies up to 100kHz with some degradation in performance.
  • The AD7366BRUZ outputs 16-bit signed data in two's complement format. The output data is available on the DOUT pin and is clocked out on the rising edge of the SCLK pin. The output data is in the format of [sign bit, 15-bit data].
  • The SYNC pin is used to synchronize the conversion process with an external clock or signal. It can be used to synchronize multiple AD7366BRUZ devices or to synchronize the conversion with an external event. To use the SYNC pin, connect it to an external clock or signal, and the AD7366BRUZ will start a new conversion on the rising edge of the SYNC signal.
