AD7380-4BCPZ-RL7 - Analog Devices

Description: Differential Input, Quad, External Reference Simultaneous Sampling, 16-Bit, SAR ADC

Download AD7380-4BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

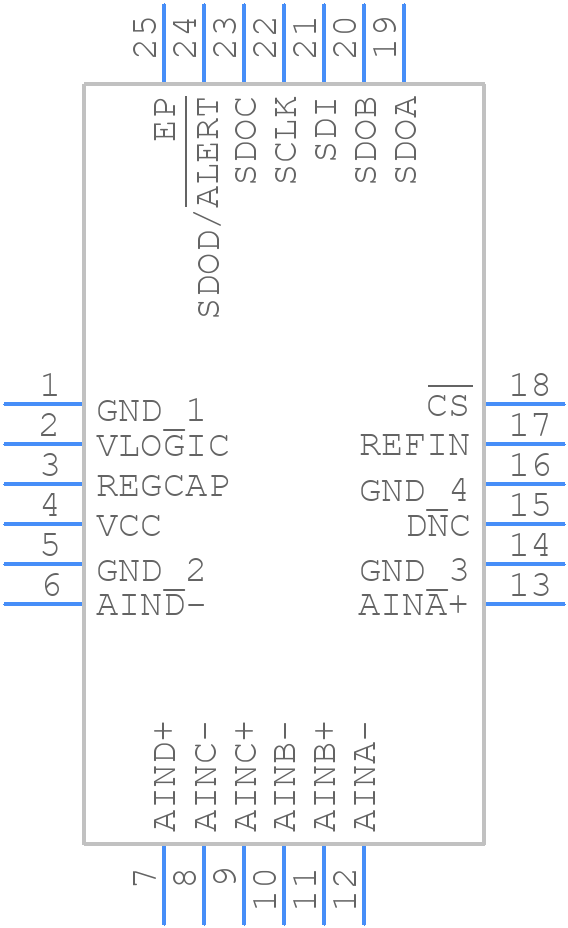

Symbol
AD7380-4BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7380-4BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-25
click to zoom
3D Models
AD7380-4BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-25
click to zoom

AD7380-4BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7380-4BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-25

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    3.4 V

  • Analog Input Voltage-Min:

    2.49 V

  • Conversion Time-Max:

    0.19 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.004577637%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFIL

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    4 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max:

    42 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7380-4BCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7380-4BCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the ADC close to the analog signal sources and to use shielding to reduce electromagnetic interference (EMI).
  • The AD7380-4BCPZ-RL7 has an internal calibration circuit that can be used to calibrate the ADC. The calibration process involves applying a known input voltage to the ADC and then using the calibration registers to adjust the ADC's offset and gain. The datasheet provides a detailed calibration procedure that should be followed to achieve the best possible accuracy.
  • The maximum sampling rate of the AD7380-4BCPZ-RL7 is 4 MSPS. The power consumption of the ADC increases with the sampling rate, so operating at the maximum sampling rate will result in higher power consumption. However, the power consumption can be reduced by operating at a lower sampling rate or by using the ADC's power-down mode.
  • The AD7380-4BCPZ-RL7 can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. The datasheet provides a detailed description of the communication protocols and the required interface signals. The ADC can also be operated in a standalone mode without a microcontroller or FPGA.
  • The AD7380-4BCPZ-RL7 is a high-performance ADC that can generate heat during operation. Proper thermal management is essential to ensure the reliability and accuracy of the ADC. The datasheet provides thermal management guidelines, including the recommended operating temperature range and thermal resistance values. It's recommended to use a heat sink or a thermally conductive material to dissipate heat away from the ADC.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7380-4BCPZ-RL7 Overview

Use the download button to access the AD7380-4BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD738, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
