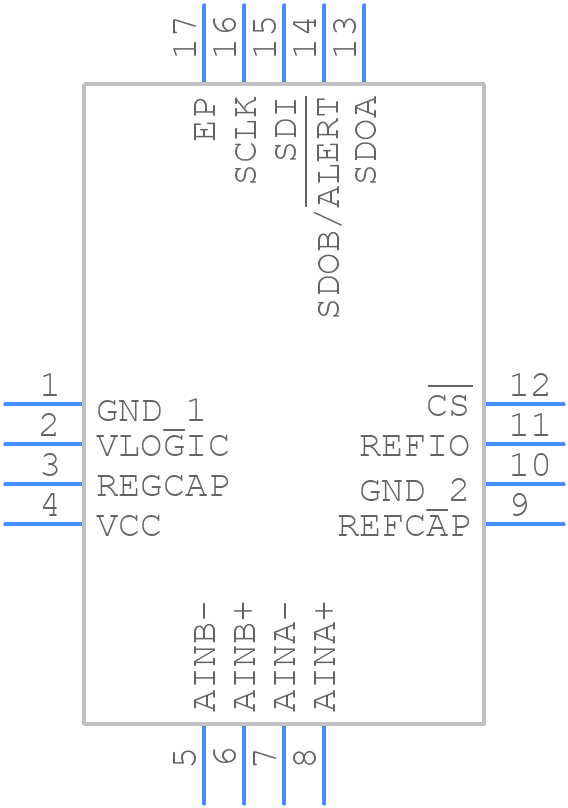

AD7383BCPZ-RL7 - Analog Devices

AD7383BCPZ-RL7 Frequently Asked Questions (FAQs)

• What is the recommended layout and placement for the AD7383BCPZ-RL7 to minimize noise and ensure optimal performance?
  The recommended layout and placement for the AD7383BCPZ-RL7 involves keeping the analog and digital sections separate, using a ground plane, and placing the device close to the analog-to-digital converter (ADC) inputs. Additionally, it's essential to minimize the length of the traces connecting the ADC inputs to the device and to use shielding to reduce electromagnetic interference (EMI).
• How do I optimize the power supply decoupling for the AD7383BCPZ-RL7?
  To optimize power supply decoupling for the AD7383BCPZ-RL7, use a combination of ceramic and electrolytic capacitors with different values (e.g., 10 nF, 100 nF, and 10 μF) placed close to the device's power pins. This helps to filter out high-frequency noise and ensure a stable power supply.
• What is the maximum clock frequency that can be used with the AD7383BCPZ-RL7?
  The maximum clock frequency that can be used with the AD7383BCPZ-RL7 is 20 MHz. However, the actual clock frequency used may be limited by the specific application and the device's operating conditions.
• How do I handle the output data from the AD7383BCPZ-RL7, and what is the format of the output data?
  The AD7383BCPZ-RL7 outputs 16-bit data in a serial format. The output data can be handled using a microcontroller or a digital signal processor (DSP) that can read the serial data and convert it into a usable format. The output data format is typically in a 2's complement format, with the most significant bit (MSB) first.
• What is the typical power consumption of the AD7383BCPZ-RL7, and how can I reduce power consumption in my design?
  The typical power consumption of the AD7383BCPZ-RL7 is around 15 mW. To reduce power consumption in your design, consider using a lower clock frequency, reducing the supply voltage, and using power-down modes when the device is not in use.
