AD7400AYRWZ - Analog Devices

Description: Analog Devices AD7400AYRWZ, 1 bit Serial ADC,, 16-Pin SOIC W

Download AD7400AYRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

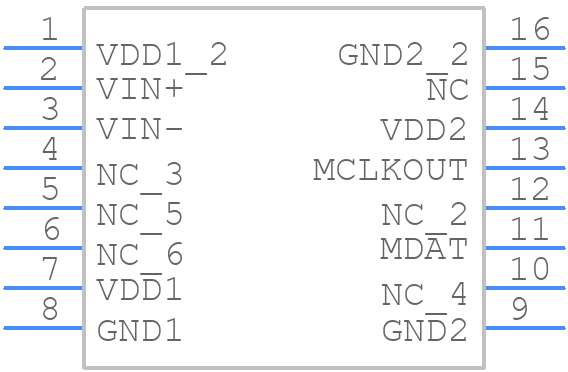

Symbol
AD7400AYRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7400AYRWZ - Analog Devices PCB footprint - Other - Other - SOIC127P1032X265-16N
click to zoom
3D Models
AD7400AYRWZ - Analog Devices - 3D model - Other - SOIC127P1032X265-16N
click to zoom

AD7400AYRWZ Details

  • Manufacturer Part Number:

    AD7400AYRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.25 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.03356%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Sample Rate:

    10 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

AD7400AYRWZ Frequently Asked Questions (FAQs)

  • The AD7400AYRWZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To handle high-frequency noise and EMI, it is recommended to use proper shielding, grounding, and filtering techniques. Additionally, using a low-pass filter or a ferrite bead on the power supply lines can help to reduce high-frequency noise. It is also important to follow proper PCB design practices, such as using a solid ground plane and minimizing signal trace lengths.
  • The recommended power-up sequence for the AD7400AYRWZ is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up or damage to the device.
  • The AD7400AYRWZ does not require calibration, as it is a self-calibrating device. However, it is recommended to follow the recommended layout and placement guidelines, as well as to use proper power supply decoupling and filtering to ensure optimal performance.
  • The AD7400AYRWZ is rated for operation over the industrial temperature range of -40°C to +85°C. However, it is recommended to follow the recommended operating conditions and thermal management guidelines to ensure optimal performance and reliability.
