AD7400YRWZ-REEL - Analog Devices

Description: Isolated Sigma-Delta ModulatorSupply Voltage. 4.5 V to 5.25 V.

Download AD7400YRWZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

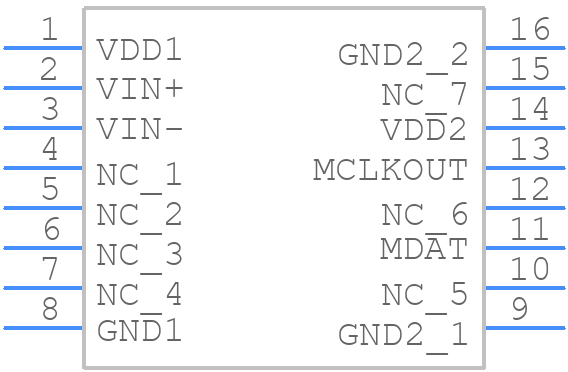

AD7400YRWZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7400YRWZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 300 MIL_2024
click to zoom
3D Models
AD7400YRWZ-REEL - Analog Devices - 3D model - Small Outline Packages - SOIC 300 MIL_2024
click to zoom

AD7400YRWZ-REEL Details

  • Manufacturer Part Number:

    AD7400YRWZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.32 V

  • Analog Input Voltage-Min:

    -0.32 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.00305%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7400YRWZ-REEL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the signal traces short and direct.
  • Ensure that the input signal is within the specified range, and the reference voltage is stable and accurate. Use a low-noise, low-impedance power supply, and decouple the power pins with capacitors. Also, ensure that the clock frequency is within the specified range and the clock signal is clean and stable.
  • The recommended clock frequency for the AD7400YRWZ-REEL is between 1 MHz and 20 MHz. However, the optimal clock frequency depends on the specific application and the desired conversion rate.
  • The AD7400YRWZ-REEL outputs 16-bit digital data in a serial format. Use a microcontroller or an FPGA to receive and process the data. Ensure that the receiving device is properly synchronized with the AD7400YRWZ-REEL's clock signal.
  • The typical power consumption of the AD7400YRWZ-REEL is around 15 mW at 3.3 V supply voltage and 10 MHz clock frequency. However, the actual power consumption may vary depending on the specific application and operating conditions.
