- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7400YRWZ
- Part Number AD7400YRWZ
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC 300 MIL
- Released Date Apr 16, 2015
- Last Modified Date Oct 2, 2024 12:01 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7400YRWZ Details
-
Manufacturer Part Number:
AD7400YRWZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOIC-16
-
Pin Count:
16
-
Manufacturer Package Code:
RW-16
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD7400YRWZ Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.
-
The AD7400YRWZ has an internal calibration mechanism. Perform a self-calibration by setting the CAL pin high and then low. The device will perform a self-calibration and store the calibration data in its internal registers.
-
The recommended input signal range for the AD7400YRWZ is between 0V and VREF (typically 2.5V). Signals outside this range may result in inaccurate measurements or device damage.
-
The AD7400YRWZ outputs 24-bit data. Use a 24-bit register to capture the data and perform any necessary bit shifting or scaling to convert the data to a usable format. Ensure the microcontroller or processor can handle the data rate and format.
-
Apply power to the VDD pin first, followed by the VREF pin. Then, apply the analog input signal. Finally, bring the CS pin low to enable the device. This sequence ensures proper power-up and minimizes the risk of latch-up or damage.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
AD7400YRWZ Overview

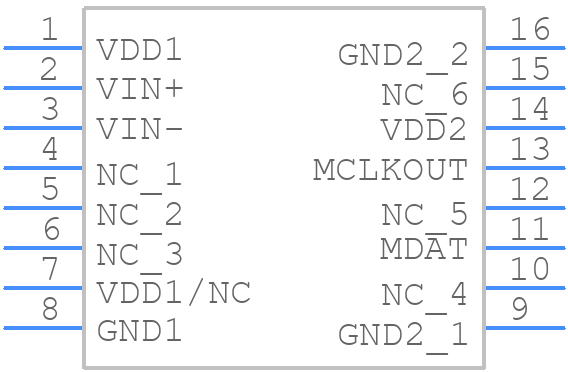

Use the download button to access the AD7400YRWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD740,
or try a keyword search, such as Analog to Digital Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
