AD7401YRWZ-REEL - Analog Devices

Description: Analog Devices AD7401YRWZ-REEL, 16 bit Serial ADC, Differential Input, 16-Pin SOIC W

Download AD7401YRWZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

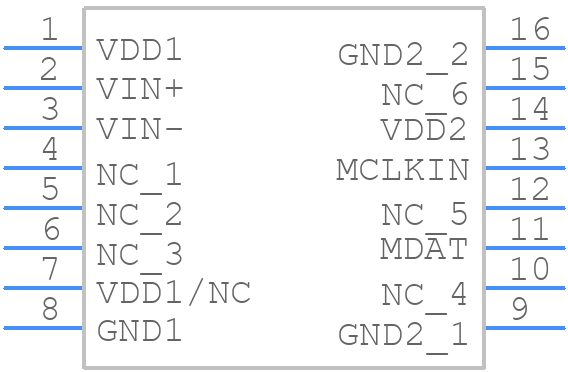

AD7401YRWZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7401YRWZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
AD7401YRWZ-REEL - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

AD7401YRWZ-REEL Details

  • Manufacturer Part Number:

    AD7401YRWZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.2 V

  • Analog Input Voltage-Min:

    -0.2 V

  • Conversion Time-Max:

    0.2 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.03814697%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Sample Rate:

    20 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

AD7401YRWZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7401YRWZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, consider using a thermocouple or RTD sensor with a high-accuracy amplifier to improve temperature measurement accuracy.
  • The AD7401YRWZ-REEL is sensitive to power supply noise, and it's recommended to keep the noise on the power supply lines below 10mV peak-to-peak. A low-noise power supply, such as a linear regulator, and a high-quality decoupling capacitor network can help minimize power supply noise.
  • Yes, the AD7401YRWZ-REEL can be used in a multi-channel application, but it's essential to ensure that each channel has its own dedicated analog and digital grounds to prevent crosstalk and noise coupling between channels.
  • To troubleshoot common issues with the AD7401YRWZ-REEL, start by verifying the power supply voltage, checking the communication protocol and settings, and ensuring that the device is properly configured. Use a logic analyzer or oscilloscope to debug the digital communication and analog signals.
