AD7403-8BRIZ-RL - Analog Devices

Description: 16-Bit, Isolated Sigma-Delta Modulator

Download AD7403-8BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

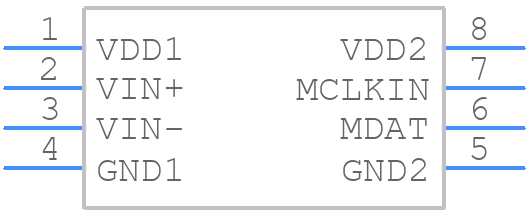

Symbol
AD7403-8BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7403-8BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Standard Small Outline Package, with Increased Creepage [SOIC_IC]*
click to zoom
3D Models
AD7403-8BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - 8-Lead Standard Small Outline Package, with Increased Creepage [SOIC_IC]*
click to zoom

AD7403-8BRIZ-RL Details

  • Manufacturer Part Number:

    AD7403-8BRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RI-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.32 V

  • Analog Input Voltage-Min:

    -0.32 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    7.5 mm

  • Linearity Error-Max (EL):

    0.0099%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    20 MHz

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    33.5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

AD7403-8BRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7403-8BRIZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power supply decoupling.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed in a thermally stable environment, and the temperature sensor should be thermally coupled to the device being measured.
  • The recommended power-up sequence for the AD7403-8BRIZ-RL is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This sequence helps to prevent latch-up and ensures proper device operation.
  • To minimize EMI when using the AD7403-8BRIZ-RL, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters on the power supply lines. Additionally, the PCB should be designed with EMI in mind, using techniques such as grounding, shielding, and routing signals carefully.
  • The maximum allowable noise on the power supply lines for the AD7403-8BRIZ-RL is 100 mV peak-to-peak. Exceeding this limit can affect the device's performance and accuracy. It's recommended to use a low-noise power supply and to decouple the power supply lines with low-ESR capacitors.
