AD7403TRIZ-EP - Analog Devices

Description: 16-Bit, Isolated Sigma-Delta Modulator

Download AD7403TRIZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

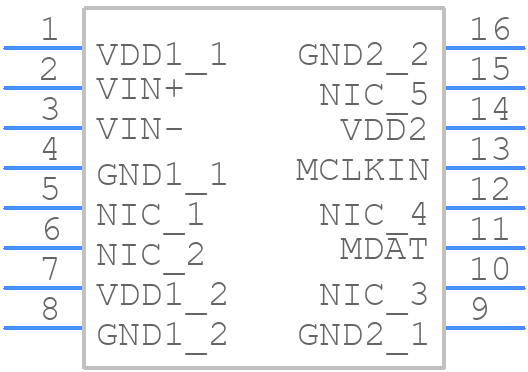

Symbol
AD7403TRIZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7403TRIZ-EP - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7403TRIZ-EP
click to zoom
3D Models
AD7403TRIZ-EP - Analog Devices - 3D model - Small Outline Packages - AD7403TRIZ-EP
click to zoom

AD7403TRIZ-EP Details

  • Manufacturer Part Number:

    AD7403TRIZ-EP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-04-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.32 V

  • Analog Input Voltage-Min:

    -0.32 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    12.75 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.0781 MHz

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    36 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7403TRIZ-EP Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7403TRIZ-EP involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure the accuracy of the AD7403TRIZ-EP's analog-to-digital conversion, it's essential to follow proper PCB layout guidelines, use a high-quality analog power supply, and minimize noise and interference in the analog signal path. Additionally, calibrating the device and using a high-precision voltage reference can also improve accuracy.
  • The AD7403TRIZ-EP can support clock frequencies up to 20 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information.
  • The AD7403TRIZ-EP's digital output data is available in a 16-bit parallel format. To handle the output data, you can use a microcontroller or a digital signal processor to read the data and perform any necessary processing or analysis. It's essential to ensure that the receiving device can handle the data transfer rate and format.
  • The AD7403TRIZ-EP's power consumption varies depending on the operating mode and clock frequency. In normal operation, the device typically consumes around 35 mW of power. However, this can increase to around 50 mW in high-speed mode. It's recommended to consult the datasheet for more information on power consumption and power management.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7403TRIZ-EP Overview

Use the download button to access the AD7403TRIZ-EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD740, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
