AD7405BRIZ-RL7 - Analog Devices

Description: 16-Bit, Isolated Sigma-Delta Modulator, LVDS Interface

Download AD7405BRIZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

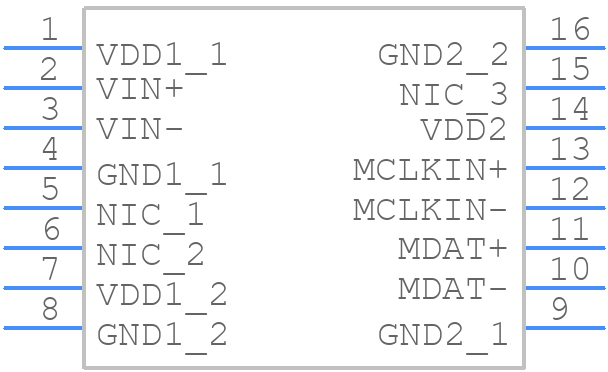

Symbol
AD7405BRIZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7405BRIZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Standard Small Outline Packag
click to zoom
3D Models
AD7405BRIZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 16-Lead Standard Small Outline Packag
click to zoom

AD7405BRIZ-RL7 Details

  • Manufacturer Part Number:

    AD7405BRIZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MS-013AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.32 V

  • Analog Input Voltage-Min:

    -0.32 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.75 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

AD7405BRIZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7405BRIZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VDD pin.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed close to the temperature sensor, and the temperature sensor should be thermally connected to the device.
  • The recommended power-up sequence for the AD7405BRIZ-RL7 is to first apply the analog power supply (VDD) and then the digital power supply (VDDIO). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
  • The AD7405BRIZ-RL7's digital output data should be handled as a 16-bit, 2's complement data format. The data is output in a serial format, with the most significant bit (MSB) first. The data should be clocked out of the device using the SCLK pin, and the data should be latched on the rising edge of the SCLK signal.
  • The maximum allowable noise on the VDD pin of the AD7405BRIZ-RL7 is 10mV peak-to-peak. Exceeding this limit can affect the device's performance and accuracy. It's recommended to use a low-noise power supply and to decouple the VDD pin with a low-ESR capacitor.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7405BRIZ-RL7 Overview

Use the download button to access the AD7405BRIZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD740, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
