AD7450BRMZ - Analog Devices

Description: Analog Devices AD7450BRMZ, 12-bit Serial ADC Differential Input, 8-Pin MSOP

Download AD7450BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

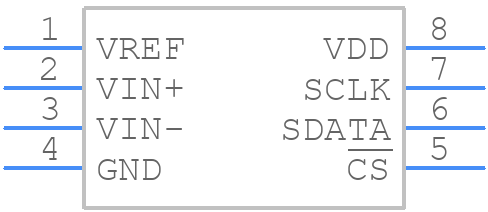

Symbol
AD7450BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7450BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-08-2022
click to zoom
3D Models
AD7450BRMZ - Analog Devices - 3D model - Small Outline Packages - RM-08-2022
click to zoom

AD7450BRMZ Details

  • Manufacturer Part Number:

    AD7450BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.875 V

  • Analog Input Voltage-Min:

    -1.875 V

  • Conversion Time-Max:

    1.066 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.833 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7450BRMZ Frequently Asked Questions (FAQs)

  • The AD7450BRMZ is a high-speed analog-to-digital converter, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. A recommended layout and placement guide can be found in the AD7450BRMZ evaluation board documentation, which includes guidelines for component placement, routing, and grounding.
  • To optimize the analog input signal chain for the AD7450BRMZ, ensure that the input signal is properly filtered and buffered to minimize noise and distortion. Use a low-pass filter with a cutoff frequency below the Nyquist frequency to remove high-frequency noise, and consider using a buffer amplifier to drive the input signal. Additionally, ensure that the input signal is within the specified voltage range and that the input impedance is matched to the source impedance.
  • The AD7450BRMZ can be clocked using an external clock source or an internal clock source. For optimal performance, a low-jitter clock source is recommended, such as a crystal oscillator or a high-quality clock generator. The clock frequency should be set to the desired sampling rate, and the clock signal should be routed to the CLKIN pin.
  • Metastability can occur in the AD7450BRMZ when the input signal is near the threshold voltage. To handle metastability, use hysteresis on the input signal, or use a Schmitt trigger circuit to clean up the input signal. Additionally, consider using a metastability filter or a synchronizer circuit to ensure that the output data is stable and accurate.
  • To ensure optimal performance and minimize noise, it is recommended to decouple the power supply lines (VDD and VSS) with a combination of ceramic capacitors (e.g., 100 nF and 10 μF) and a ferrite bead or a power inductor. This will help to filter out high-frequency noise and ensure a stable power supply.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD7450BRMZ Overview

Use the download button to access the AD7450BRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD745, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
