AD7453BRTZ-R2 - Analog Devices

Description: ANALOG DEVICES - AD7453BRTZ-R2 - Analogue to Digital Converter, 12 bit, 555 kSPS, Pseudo Differential, SPI, Single, 2.7 V

Download AD7453BRTZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

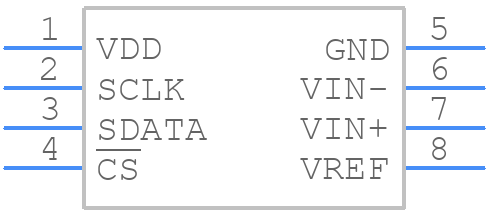

AD7453BRTZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7453BRTZ-R2 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - 8-Lead Small Outline Transistor Package [SOT-23] (RT-8)
click to zoom
3D Models
AD7453BRTZ-R2 - Analog Devices - 3D model - SOT23 (8-Pin) - 8-Lead Small Outline Transistor Package [SOT-23] (RT-8)
click to zoom

AD7453BRTZ-R2 Details

  • Manufacturer Part Number:

    AD7453BRTZ-R2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    1.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.555 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD7453BRTZ-R2 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7453BRTZ-R2 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer, and to avoid running digital signals under the device.
  • To optimize the performance of the AD7453BRTZ-R2 in noisy environments, it's recommended to use a low-pass filter on the analog input, use a shielded cable for the analog signal, and consider using a common-mode filter or a differential amplifier to reduce common-mode noise. Additionally, ensure that the device is properly decoupled and that the power supply is clean and well-regulated.
  • The maximum sampling rate that can be achieved with the AD7453BRTZ-R2 is 1 MSPS (million samples per second). However, this rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface used.
  • Yes, the AD7453BRTZ-R2 can be used in multiplexed mode. The device has a built-in track-and-hold amplifier that allows it to sample multiple channels. The multiplexer can be controlled using the chip select (CS) and clock (CLK) signals.
  • The power consumption of the AD7453BRTZ-R2 depends on the operating mode and the clock frequency. In normal mode, the device consumes around 15 mW at 1 MSPS. In power-down mode, the device consumes around 1 μW.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7453BRTZ-R2 Overview

Use the download button to access the AD7453BRTZ-R2 schematic symbol, PCB footprint, and 3D model.
