AD7472ARUZ-REEL7 - Analog Devices

Description: 12-Bit, 2.7 V to 5.25 V, 1.5 MSPS Low Power ADC

Download AD7472ARUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

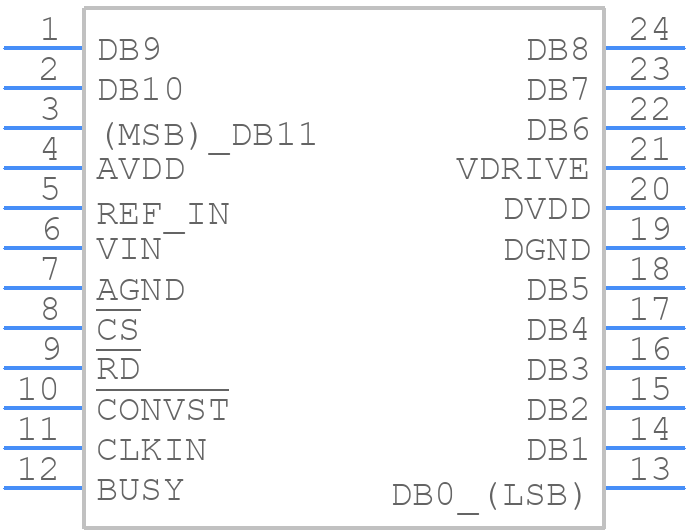

AD7472ARUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7472ARUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24
click to zoom
3D Models
AD7472ARUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-24
click to zoom

AD7472ARUZ-REEL7 Details

  • Manufacturer Part Number:

    AD7472ARUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    0.538 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD7472ARUZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7472ARUZ-REEL7 involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog signal source. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane, and to route the analog and digital signals on separate layers.
  • The AD7472ARUZ-REEL7 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers. It's recommended to refer to the device's datasheet and application notes for a detailed calibration procedure.
  • The maximum sampling rate of the AD7472ARUZ-REEL7 is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.
  • Yes, the AD7472ARUZ-REEL7 can be used in a multi-channel application. The device has a serial interface that allows it to be connected to a microcontroller or DSP, and multiple devices can be connected to the same bus. However, it's recommended to use a separate analog input buffer for each channel to ensure accurate conversions.
  • The power consumption of the AD7472ARUZ-REEL7 is typically around 15 mW at a supply voltage of 3.3 V. The power consumption can be reduced by using a lower supply voltage, reducing the clock frequency, and using the device's power-down mode when not in use.
