AD7472BRUZ-REEL7 - Analog Devices

Description: 12-Bit, 2.7 V to 5.25 V, 1.5 MSPS Low Power ADC

Download AD7472BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

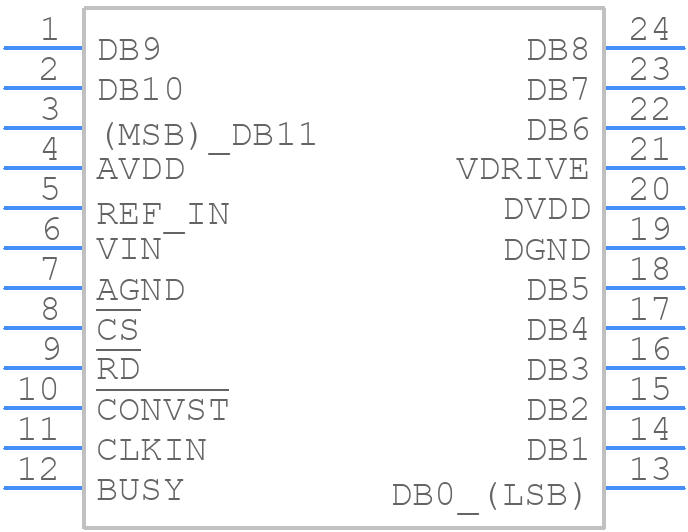

AD7472BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7472BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24
click to zoom
3D Models
AD7472BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-24
click to zoom

AD7472BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD7472BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    0.538 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7472BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7472BRUZ-REEL7 involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog signal source. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane, and to route the analog signals on the top layer, away from the digital signals.
  • The AD7472BRUZ-REEL7 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing a specific code to the device's calibration register, which adjusts the internal offset and gain to achieve the highest accuracy. The calibration process should be performed at the operating temperature range and with the same power supply voltage as the application.
  • The maximum sampling rate of the AD7472BRUZ-REEL7 is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog signal.
  • The AD7472BRUZ-REEL7 has a power-on reset (POR) and brown-out reset (BOR) feature that resets the device when the power supply voltage falls below a certain threshold. To handle these features, the system should be designed to ensure that the power supply voltage is stable and within the recommended range. Additionally, the system should be designed to handle the reset signal generated by the device during POR and BOR events.
  • The recommended power supply decoupling for the AD7472BRUZ-REEL7 involves using a 10 μF ceramic capacitor in parallel with a 1 μF ceramic capacitor, both connected between the power supply pin and the ground pin. This decoupling scheme helps to reduce noise and ensure stable operation of the device.
