AD7476ABRM - Analog Devices

Description: Analog to Digital Converters - ADC 12Bit 1MSPS Lo-Pwr

Download AD7476ABRM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

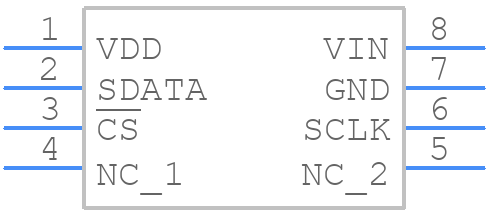

Symbol
AD7476ABRM - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7476ABRM - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP] (RM-8)
click to zoom
3D Models
AD7476ABRM - Analog Devices - 3D model - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP] (RM-8)
click to zoom

AD7476ABRM Details

  • Manufacturer Part Number:

    AD7476ABRM

  • Source Url Status Check Date:

    2013-05-01 14:56:18.293

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD7476ABRM Frequently Asked Questions (FAQs)

  • The AD7476ABRM is a high-speed, high-precision ADC, and as such, it requires careful layout and placement to achieve optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections.
  • The AD7476ABRM has high-speed digital outputs that require careful handling to avoid signal degradation and noise coupling. It is recommended to use a low-impedance transmission line, such as a 50-ohm microstrip or stripline, and to terminate the lines with a 50-ohm resistor to match the output impedance of the ADC.
  • The AD7476ABRM requires a well-regulated power supply with low noise and ripple to achieve optimal performance. It is recommended to use a low-ESR capacitor, such as a ceramic or film capacitor, with a value of at least 10 uF, and to place it as close as possible to the power pins of the ADC.
  • The AD7476ABRM has an internal calibration circuit that can be used to calibrate the ADC. The calibration process involves applying a known input voltage and then reading the output code to determine the gain and offset errors. The datasheet provides a detailed calibration procedure that should be followed to ensure accurate results.
  • The AD7476ABRM has a maximum sampling rate of 1.5 MSPS (million samples per second), but this can be limited by the system clock frequency, the input signal bandwidth, and the output data rate. It is recommended to consult the datasheet and the application notes for more information on the sampling rate limitations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7476ABRM Overview

Use the download button to access the AD7476ABRM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD747, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
