AD7572AJNZ03 - Analog Devices

Description: AD7572AJNZ03, 12 bit ADC, Parallel, 24-Pin PDIP

Download AD7572AJNZ03 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

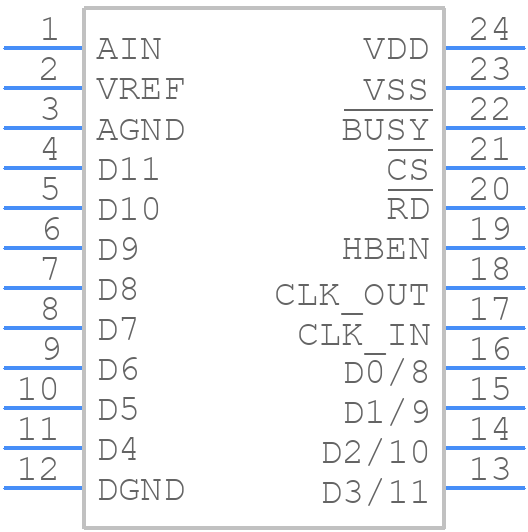

Symbol
AD7572AJNZ03 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7572AJNZ03 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-24)-+-+-
click to zoom
3D Models
AD7572AJNZ03 - Analog Devices - 3D model - Dual-In-Line Packages - (N-24)-+-+-
click to zoom

AD7572AJNZ03 Details

  • Manufacturer Part Number:

    AD7572AJNZ03

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    15 V

  • Analog Input Voltage-Min:

    -15 V

  • Conversion Time-Max:

    3.25 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.45 mm

  • Linearity Error-Max (EL):

    0.024%

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7572AJNZ03 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and the device operates as expected.
  • To optimize performance in noisy environments, use a low-pass filter on the analog input pins, keep the analog and digital grounds separate, and use a decoupling capacitor on the AVDD pin. Additionally, consider using a shielded enclosure and keeping the device away from high-frequency sources.
  • The maximum sampling rate of the AD7572AJNZ03 is 250 kSPS. However, this rate may be limited by the system's analog input bandwidth, the quality of the analog input signal, and the digital interface used to communicate with the device.
  • Yes, the AD7572AJNZ03 can be used with an external reference voltage. The device has a REF_IN pin that can be connected to an external reference voltage source. The reference voltage range is 2.5 V to 5.5 V, and the device will operate with a reference voltage as low as 2.5 V.
  • The typical power consumption of the AD7572AJNZ03 is 35 mW at 3.3 V supply voltage and 250 kSPS sampling rate. However, this value may vary depending on the specific application, sampling rate, and operating conditions.
