AD7574JNZ - Analog Devices

Description: AD7574JNZ, 8 bit ADC, Parallel, 18-Pin PDIP

Download AD7574JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

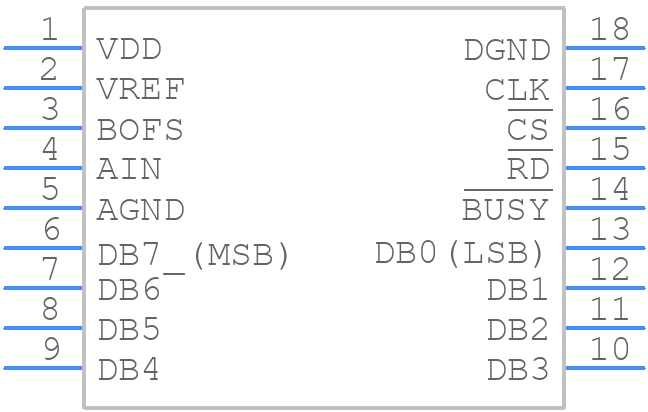

AD7574JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7574JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-18-ren1
click to zoom
3D Models
AD7574JNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-18-ren1
click to zoom

AD7574JNZ Details

  • Manufacturer Part Number:

    AD7574JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    N-18

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    20 V

  • Analog Input Voltage-Min:

    -20 V

  • Conversion Time-Max:

    15 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e3

  • Length:

    22.48 mm

  • Linearity Error-Max (EL):

    0.293%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY, COMPLEMENTARY OFFSET BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7574JNZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supplies (DVCC and OVCC). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize performance in noisy environments, use a low-pass filter on the analog input, ensure good power supply decoupling, and consider using a shielded enclosure for the circuit board. Additionally, consider using a common-mode filter on the analog input lines.
  • The maximum sampling rate of the AD7574JNZ is 250 kSPS (kilosamples per second). However, this rate can be affected by the clock frequency, conversion mode, and other factors, so be sure to consult the datasheet for specific details.
  • Yes, the AD7574JNZ can be used with an external reference voltage. The device has a dedicated REF_IN pin that allows an external reference voltage to be applied. This can be useful in applications where a higher accuracy reference voltage is required.
  • The AD7574JNZ outputs 16-bit data in a 2's complement format. The output data can be handled using a microcontroller or FPGA, and can be processed using software or hardware algorithms. Be sure to consult the datasheet for specific details on the output data format and handling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7574JNZ Overview

Use the download button to access the AD7574JNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD757, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
