AD7575AQ - Analog Devices

Description: CMOS, 5A?s 8-Bit Sampling ADC

Download AD7575AQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

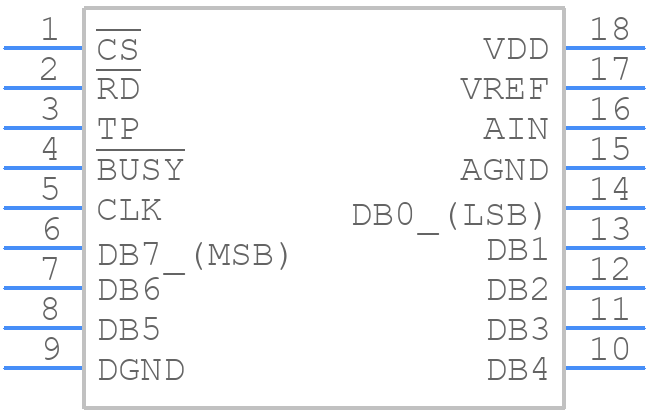

AD7575AQ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

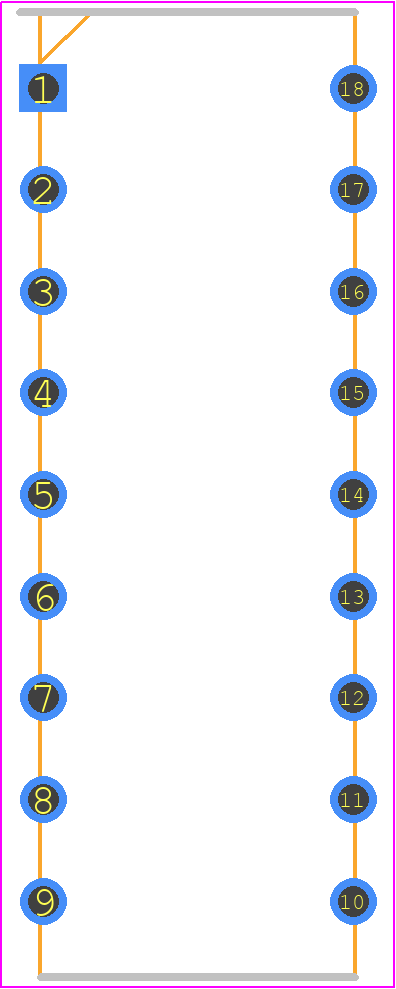

AD7575AQ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - Q-18
click to zoom
3D Models
AD7575AQ - Analog Devices - 3D model - Dual-In-Line Packages - Q-18
click to zoom

AD7575AQ Details

  • Manufacturer Part Number:

    AD7575AQ

  • Source Url Status Check Date:

    2013-05-01 14:56:19.188

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    CERDIP-18

  • Pin Count:

    18

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    2.46 V

  • Conversion Time-Max:

    15 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-GDIP-T18

  • JESD-609 Code:

    e0

  • Length:

    22.86 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    6.096 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7575AQ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up conditions.
  • To ensure accurate conversions, it is essential to follow proper layout and grounding techniques, use a low-noise power supply, and minimize digital noise on the analog inputs. Additionally, the analog input signal should be properly filtered and buffered to prevent aliasing and noise injection.
  • The maximum sampling rate of the AD7575AQ is 125 kSPS. However, this rate can be affected by the clock frequency, conversion mode, and other factors. It is recommended to consult the datasheet and application notes for specific guidance on achieving the desired sampling rate.
  • Yes, the AD7575AQ can be used in a multi-channel application. The device has a built-in channel sequencer that allows it to sequence through multiple channels. However, the user must ensure that the channel switching time is sufficient to allow for proper settling of the analog input signal.
  • The AD7575AQ has internal overvoltage protection on the analog inputs. However, it is still recommended to use external protection circuitry, such as voltage-limiting resistors or clamping diodes, to prevent damage from excessive voltage levels.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7575AQ Overview

Use the download button to access the AD7575AQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD757, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
