AD7682BCBZ-RL7 - Analog Devices

Description: 16 Bit Analog to Digital Converter 4 Input 1 SAR 20-WLCSP (2.39x2.39)

Download AD7682BCBZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

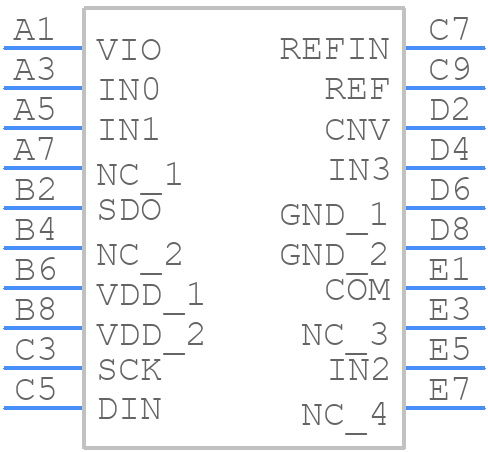

AD7682BCBZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7682BCBZ-RL7 - Analog Devices PCB footprint - Other - Other - Package Name/Use one from drop down
click to zoom
3D Models
AD7682BCBZ-RL7 - Analog Devices - 3D model - Other - Package Name/Use one from drop down
click to zoom

AD7682BCBZ-RL7 Details

  • Manufacturer Part Number:

    AD7682BCBZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CB-20-12

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-04-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    2200 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.39 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,5X9,17/10

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.39 mm

AD7682BCBZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-pass filter on the AVDD and AVSS pins to reduce noise.
  • The AD7682BCBZ-RL7 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an internal voltage reference that can be used for calibration. It is recommended to perform a self-calibration cycle after power-up to ensure accurate conversions.
  • The AD7682BCBZ-RL7 can achieve a maximum sampling rate of 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.
  • The AD7682BCBZ-RL7 outputs 16-bit data in a twos-complement format. The output data can be handled by a microcontroller or a digital signal processor, and can be processed and analyzed using software or firmware.
  • The AD7682BCBZ-RL7 has a typical power consumption of 15 mW at 3 V supply voltage. To reduce power consumption, it is recommended to use a lower supply voltage, reduce the sampling rate, and use the power-down mode when the device is not in use.
