AD7683ACPZRL7 - Analog Devices

Description: 1-Channel Single ADC SAR 100ksps 16-bit Serial 8-Pin LFCSP EP T/R

Download AD7683ACPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

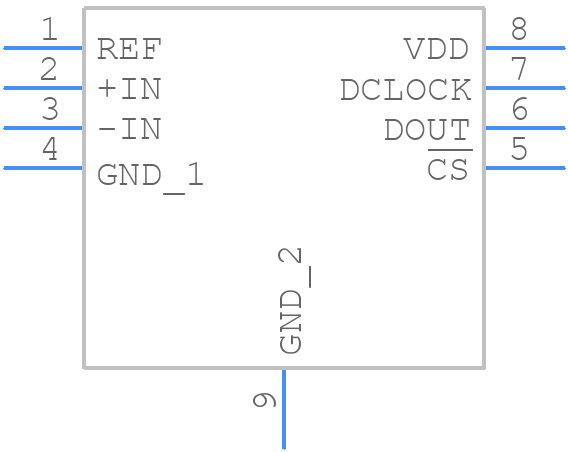

AD7683ACPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7683ACPZRL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-8-3)
click to zoom
3D Models
AD7683ACPZRL7 - Analog Devices - 3D model - Small Outline No-lead - (CP-8-3)
click to zoom

AD7683ACPZRL7 Details

  • Manufacturer Part Number:

    AD7683ACPZRL7

  • Source Url Status Check Date:

    2013-05-01 14:56:19.698

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0092%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD7683ACPZRL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7683ACPZRL7 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals under the ADC.
  • To minimize EMI and RFI susceptibility, it's recommended to use a shielded enclosure, keep the ADC away from high-frequency sources, and use a low-pass filter on the analog input signals. Additionally, using a common-mode choke on the analog input signals can help to reduce EMI and RFI.
  • The recommended power-up sequence for the AD7683ACPZRL7 is to power up the analog supply (VCC) first, followed by the digital supply (VIO). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up or damage to the device.
  • The AD7683ACPZRL7 does not require calibration, as it is a self-calibrating ADC. However, it's recommended to perform a system-level calibration to ensure that the ADC is operating within the desired specifications. This can involve adjusting the gain and offset of the ADC to match the specific requirements of the system.
  • The recommended clock frequency for the AD7683ACPZRL7 is between 1 MHz and 10 MHz. However, the optimal clock frequency will depend on the specific application and the desired conversion rate. It's recommended to consult the datasheet and application notes for more information on clock frequency selection.
